Sierra Patio Cover | Pergola | Verandah
Safe ultra-durable, polycarbonate patio cover, and multi-functional outdoor structure, designed for superior protection all year-round
Brand: Palram | Canopia
Delivery ETA
3–10 biz days (metro)
*Free Delivery
SYD · MEL · BRISB · ADELA
Warranty
| Description | Dimension | Specification | Assembly | Warranty | Frequently Asked Questions | Reviews (6) |
Sierra Patio Cover Pergola by Palram – Canopia Polycarbonate Patio Cover kit
- Safe ultra-durable, polycarbonate patio cover, and multi-functional outdoor structure, designed for superior protection all year-round
- Provides up to 100% protection from harmful UV sun rays, while transmitting natural sun light
- Life-time resilient polycarbonate glazing; does not fracture, become brittle or turn yellow over time
- Proprietary screw-free roofing assembly system, specially developed to prevent rain/dew leaks
- Firm, anti-rust aluminum structure, specially engineered to withstand harsh weather conditions
- Allows an extended use of your backyard throughout the year
- Clean-lined, modern design
- Friendly and safe DIY assembly structure
- Maintenance-free, built-to-last thanks to outstandingly durable materials
- Made with 100% recyclable materials
Polycarbonate Panels
Virtually unbreakable 6mm twin-wall polycarbonate roof panels offer high impact, shatter resistance and protection from inclement weather, available in either grey or clear colour.
Maintain their integrity, provide complete UV blockage, and are 100% UV protected; they do not discolour, fracture or become brittle over time
Ready to assemble pre-cut panels

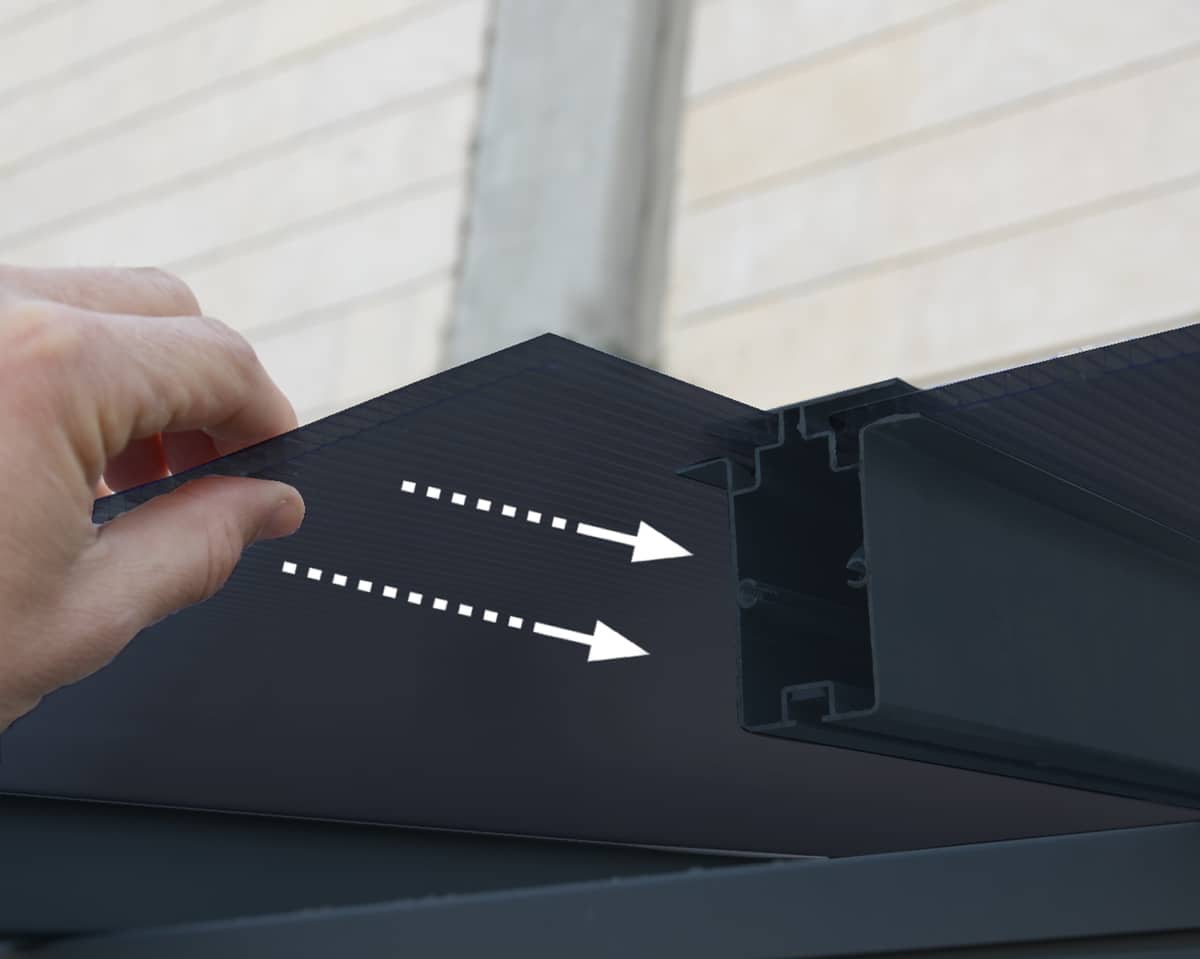

Safe, quick and easy DIY assembly Sliding roof panels installation
Adjustable and flexible fixing method

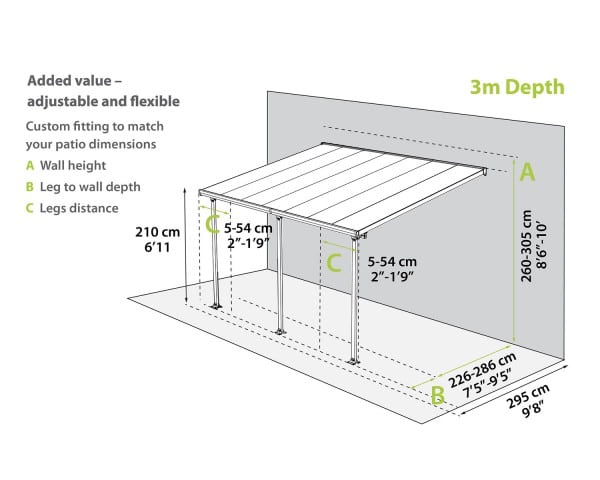

The Sierra is a high performance structure, with flexible positioning poles enabling you to set your required height at the wall connection, the distance from the house and between the poles at the front.
Wall mounting plate is adjustable to meet your desired height between 260-305 cm (101.2 in. - 120 in.); allowing a flexible positioning of the roof slope enabling snow and rain to slide off (A)

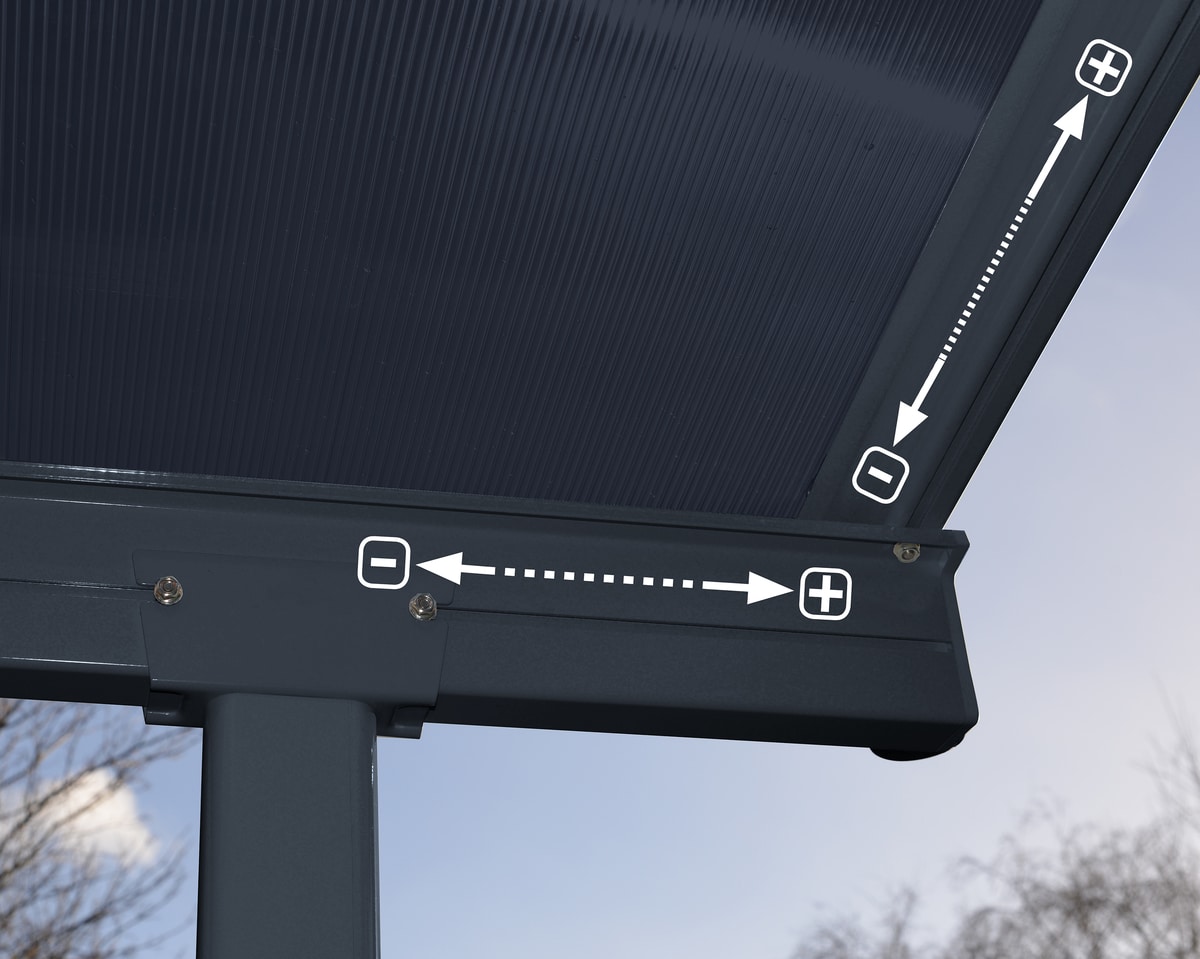

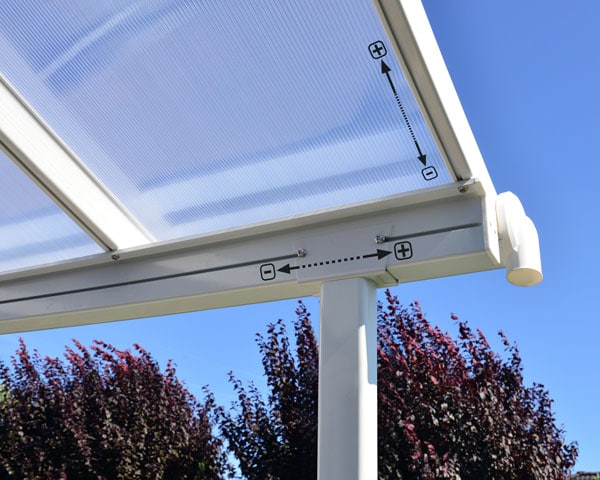

Adjustable oval poles allow for ideal positioning: left to right 0-54 cm (0 in. - 21.2 in.) and front to back 226-286 cm (89 in. - 112.6 in.) (B + C)

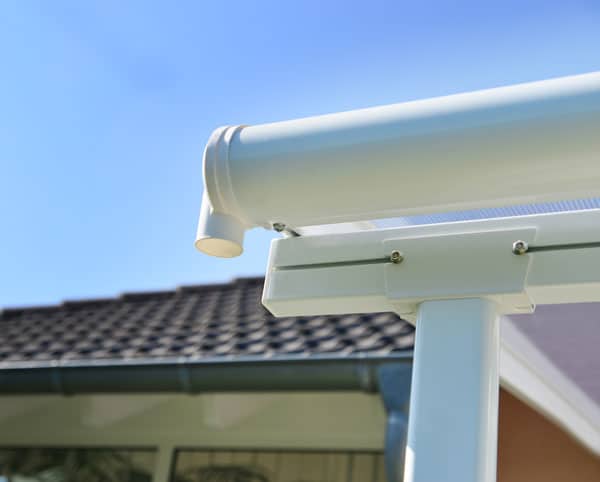

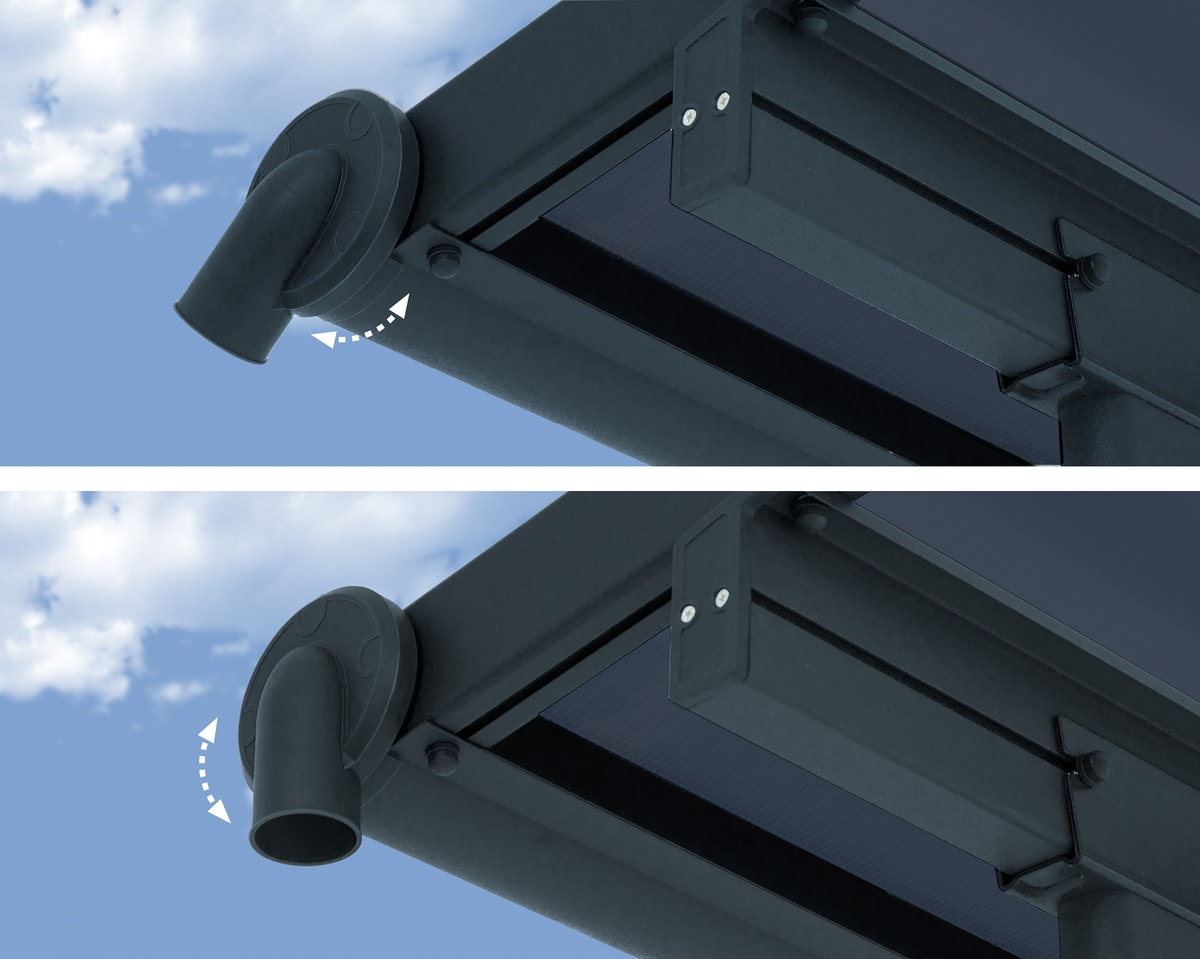

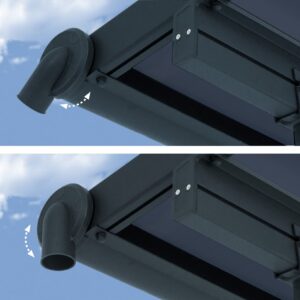

Gutter & gutter heads

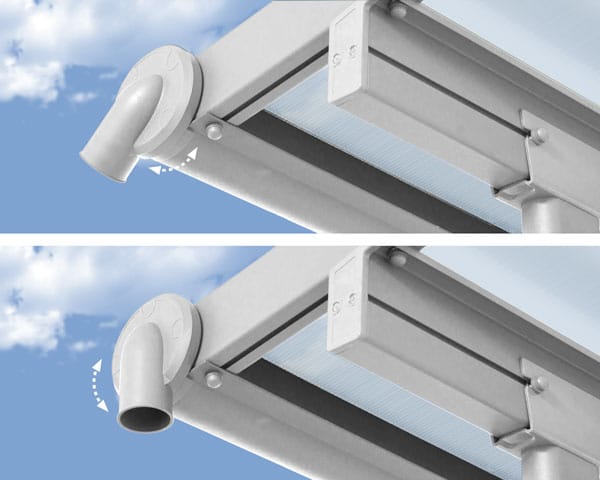

Integrated gutter and adjustable gutter heads allow you to easily channel and collect rainwater for a sustainable irrigation system
Aluminum Structure
Rust-resistant powder-coated frame made of heavy duty aluminum and laser cut galvanized steel connectors
Ready to assemble pre-drilled profiles

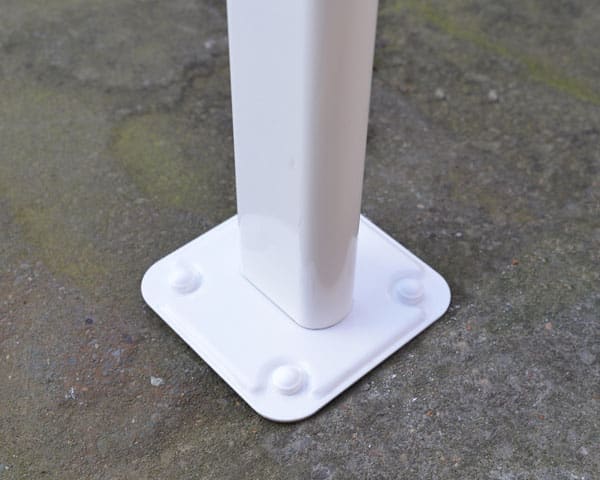

Anchoring
Requires a solid level surface and solid wall support, Anchoring included Secure the patio cover to the surface of your choosing to make the most of your sturdy structure, increase its stability and improve its weather resistance
Sturdy, oval aluminum poles

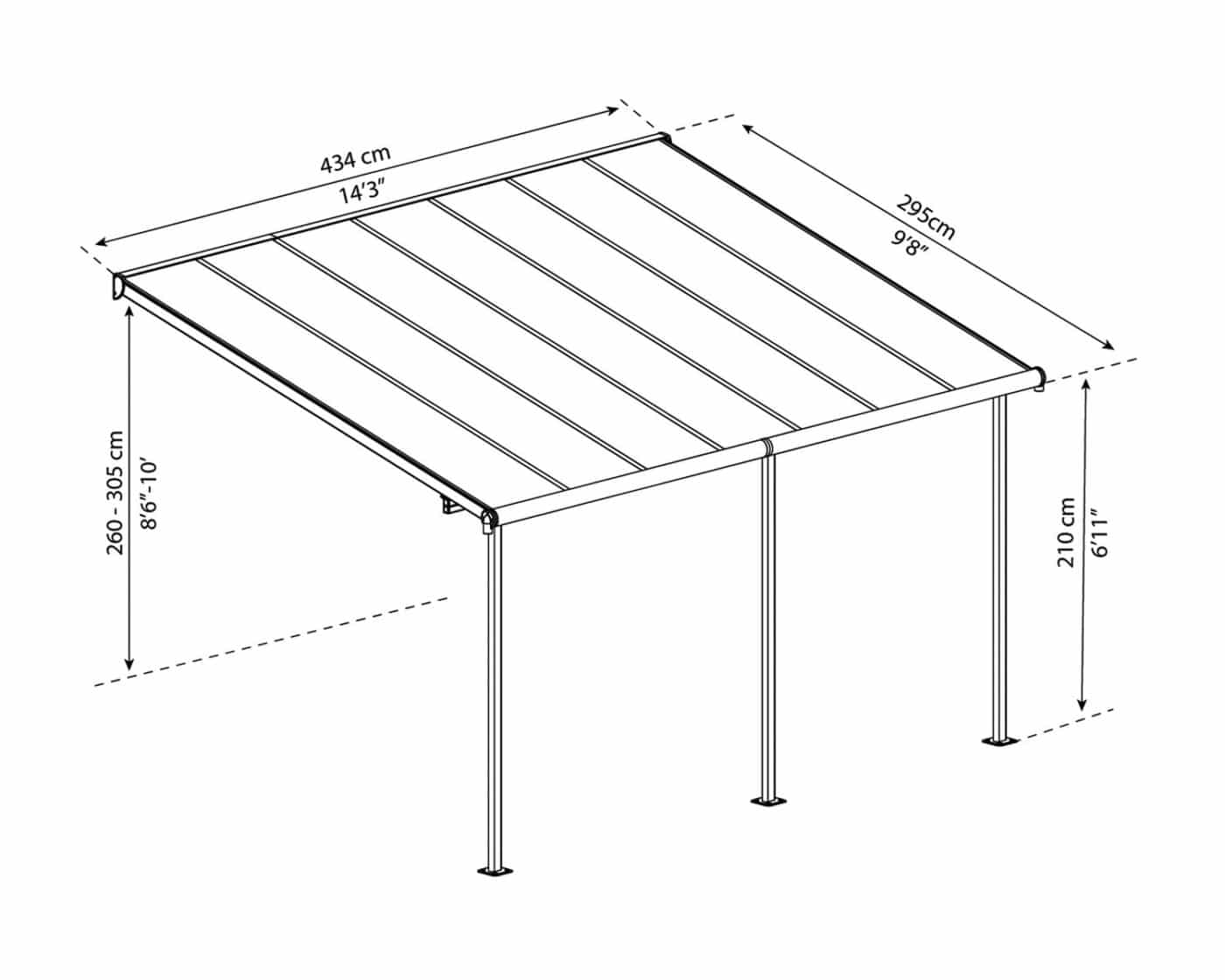

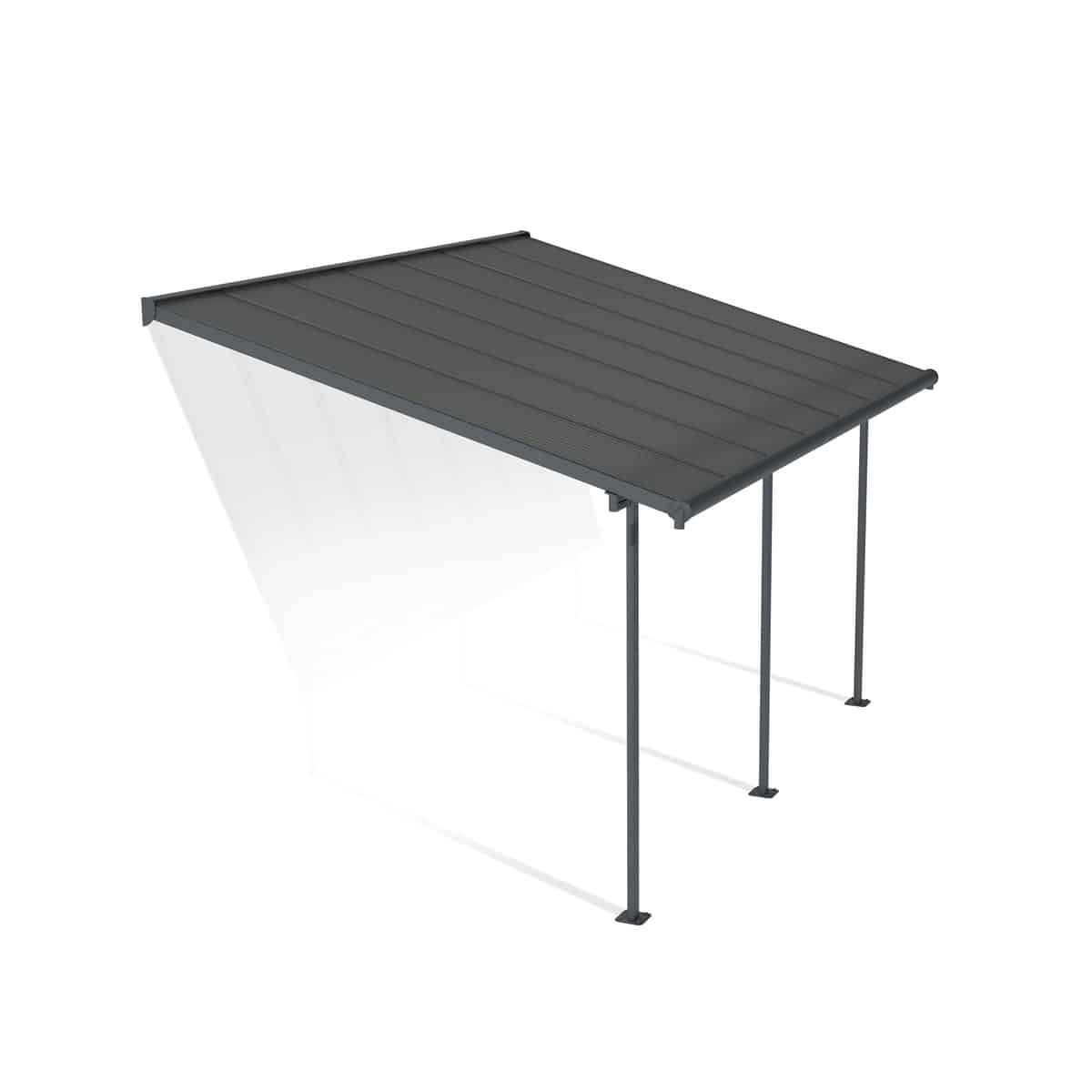

Sierra Patio Dimensions:
| ASSEMBLED | INTERNAL | DOOR DIMENSIONS | EAVES | BASE DIMENSIONS | ||||||
| cm | feet | cm | Inch | cm | Inch | cm | Inch | cm | Inch | |
| WIDTH | 295 | 9'8" | N/A | N/A | N/A | N/A | - | - | N/A | N/A |
| LENGTH | 434.0 | 14'3" | N/A | N/A | - | - | - | - | N/A | N/A |
| HEIGHT | 260-305 | 8'6"-10' | N/A | N/A | N/A | N/A | 210.0 | 82.7 | - | - |
- COVERING AREA = 12.8M2 / 137.3FT2
- STORAGE AREA = N/A / N/A
- PRODUCT VOLUME = N/A / N/A
Packaging Dimensions & Weight
|
No of Boxes: 1 |
Length
|
Width
|
Height
|
Gross Weight |
Packaging Weight |
Net Weight |
| Box 1 | 309 cm | 65 cm | 17.5 cm | 66.7 kg | 5.8 kg | 60.9 kg |
| Total Weight: | 66.7 kg | 5.8 kg | 60.9 kg |

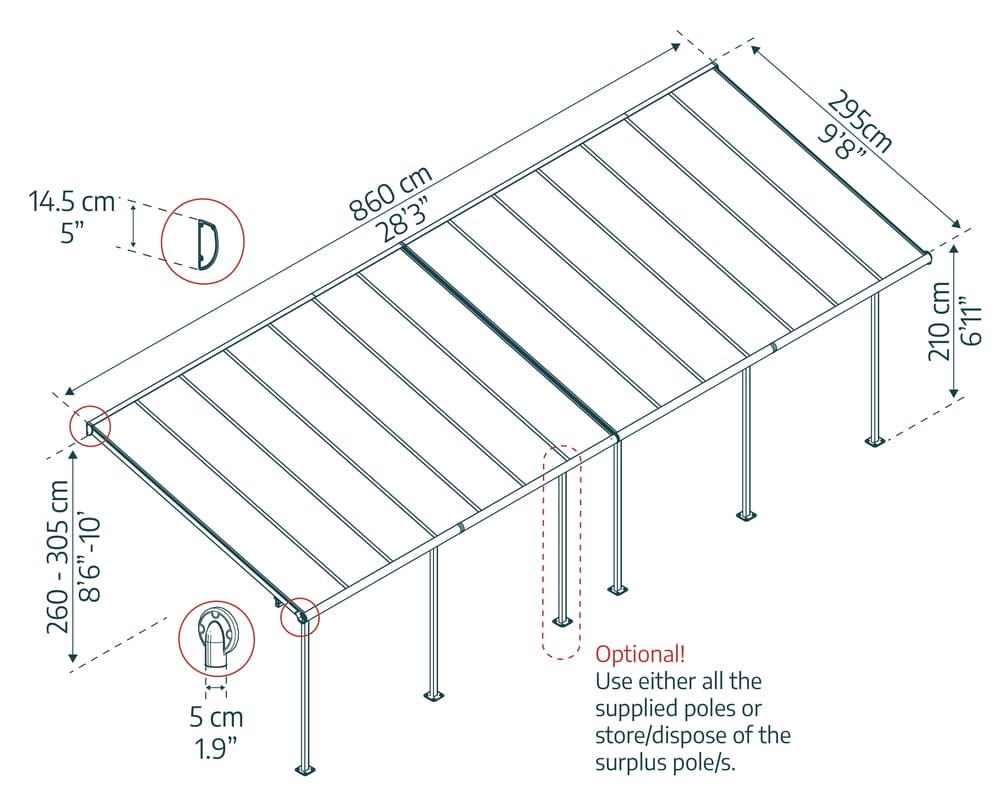

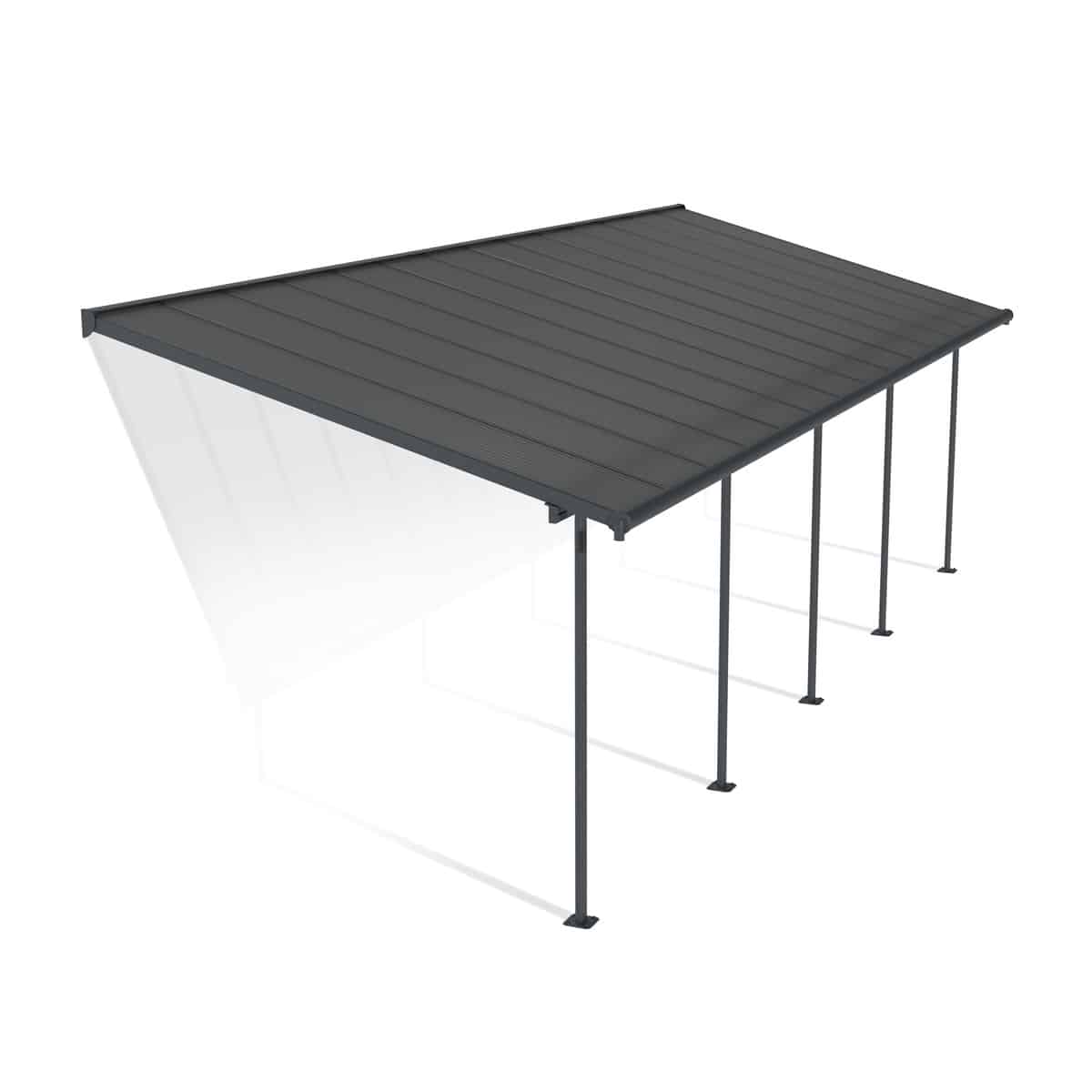

Sierra Patio Dimensions:
| ASSEMBLED | INTERNAL | DOOR DIMENSIONS | EAVES | BASE DIMENSIONS | ||||||
| cm | feet | cm | Inch | cm | Inch | cm | Inch | cm | Inch | |
| WIDTH | 295 | 9'8" | N/A | N/A | N/A | N/A | - | - | N/A | N/A |
| LENGTH | 860.0 | 28'3" | N/A | N/A | - | - | - | - | N/A | N/A |
| HEIGHT | 260-305 | 8'6"-10' | N/A | N/A | N/A | N/A | 210.0 | 82.7 | - | - |
- COVERING AREA = 25.3M2 / 272.2FT2
- STORAGE AREA = N/A / N/A
- PRODUCT VOLUME = N/A / N/A
Packaging Dimensions & Weight
|
No of Boxes: 3 |
Length
|
Width
|
Height
|
Gross Weight |
Packaging Weight |
Net Weight |
| Box 1 | 309 cm | 65 cm | 17.5 cm | 66.7 kg | 5.8 kg | 60.9 kg |
| Box 2 | 309 cm | 65 cm | 17.5 cm | 66.7 kg | 5.8 kg | 60.9 kg |
| Box 3 | 48.5 cm | 11.5 cm | 9.5 cm | 3.2 kg | 0.1 kg | 3.1 kg |
| Total Weight: | 163.6 kg | 11.3 kg | 124.9 kg |
Click to download file:
Click to download file:
If your question does not appear below, please contact us through the Contact Us page.
The Sierra only comes with grey structure & grey panels or white structure & clear panels, however we do have the Feria that is very similar pergola and comes with the grey structure and clear multi wall polycarbonate panels.
The main difference between the Sierra and Feria patio covers is the polycarbonate used for the roof panels, the Feria has an 8mm mulit-wall click in polycarbonate in clear or white colour while the Sierra has a 6mm twin wall slide polycarbonate available in clear for the white structure or grey for the grey structure, there are also other small difference in the design manly in the gutter style.
The Sierra pergola slope is adjustable and will be determined by the height of the side that connected to the wall (between 260-305cm) and the distance of the poles from the wall (between 226-286cm).
As per the manufacturer instruction the minimum required height clearance is 2.6m.
We recommend contacting the hebel wall manufacturer to get advice and solutions regarding hebel walls.
We recommend to consult a builder / installer that can come out to your place to inspect the building and provide solutions on how it can be securely attached to the house.
Yes the holes are pre drilled.
Unfortunately the Sierra pergola requires a minimum wall height of 260cm.

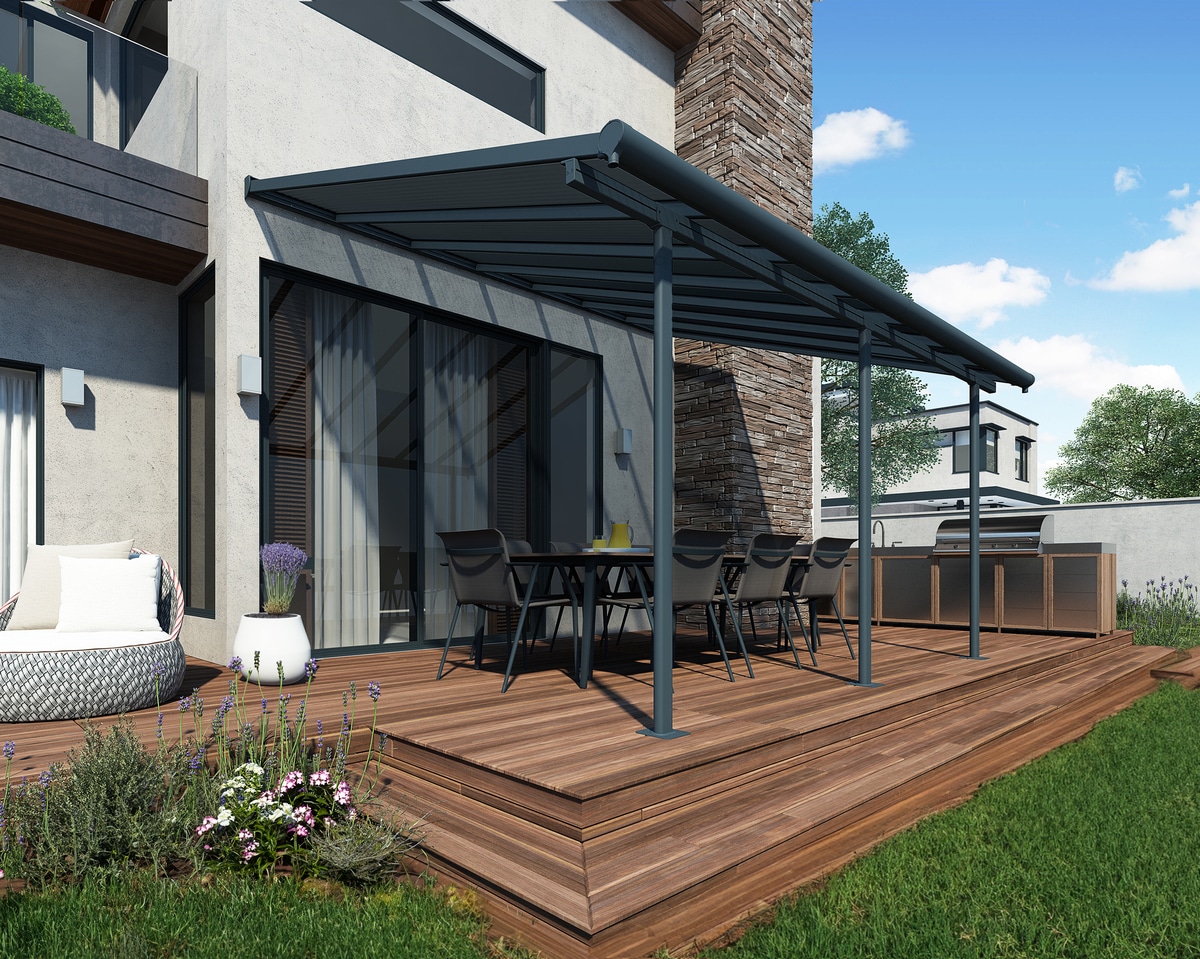

Yes the Sierra patio cover can be installed on a deck.
The Sierra patio cover need to be attached to a house wall it is not a cantilever structure, if you are interested in a cantilever structure we do have the Arizona wave 5000 please see link below. https://www.staging1.tiptopyards.com.au/product/carports/arizona-wave-5000-carport/
Yes we do have a sidewall kit for the Sierra, unfortunately we only have the side wall in the white colour available at the moment, please see link for the Sierra sidewall.
https://www.staging1.tiptopyards.com.au/product/pergola/feria-side-wall/?attribute_pa_color=white-clear&attribute_compatible-with=Sierra
6 reviews for Sierra Patio Cover | Pergola | Verandah
| 5 star | 83% | |
| 4 star | 16% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
Customer Images
*****
Some of our products may require building and planning permissions. Please check with your local council for potential building and planning requirements before proceeding with installation. If you require the engineering certificate and calculation for council application please click below.
Was the perfect size to attach to the back of my rumpus room. Solid grey panels (thought they were transparent) which is good as it provides great shade. Easy to install and looks amazing. Now to do the rest of the yard!
Thank you, Sarah! We’re so happy to hear the Sierra Patio Cover was the perfect fit and that you love the look and shade it provides. It sounds like it’s made a great addition to your space — and we love your photos! Good luck finishing the rest of the yard!
Great quality, easy to install.
Thanks, Chris! We’re glad to hear you found the Sierra Patio Cover easy to install and are happy with the quality. Enjoy your new space!
Very happy with the product
Hi Hanna, Thank you so much for sharing your feedback! We’re delighted to hear that you are very happy with the Sierra Patio Cover Pergola. If you have any more thoughts or if there’s anything else we can assist you with, feel free to reach out. We appreciate your support!
Hi Rita, Thanks for taking the time and rating the Sierra Pergola 5 stars :)
Well packaged, clearly marked components, excellent condition.
Hi Andrew, Thanks for the kind review of the Sierra pergola kit
