Herald Door Awning | Awning Kit
Safe ultra-durable awning, designed to finely decorate and protect your entryway, doors, and windows
Brand: Palram | Canopia
Delivery ETA
3–10 biz days (metro)
*Free Delivery
SYD · MEL · BRISB · ADELA
Warranty
Delivery ETA3–10 biz days (metro)
Free DeliverySYD · MEL · BRISB · ADELA
WarrantyCheck product warranty
Easy DIY AssemblyStep-by-step instructions
Built to LastHeavy-duty steel frame
Expert SupportFriendly help 7 days
| DESCRIPTION | DIMENSIONS | ASSEMBLY | WARRANTY | Reviews (7) |

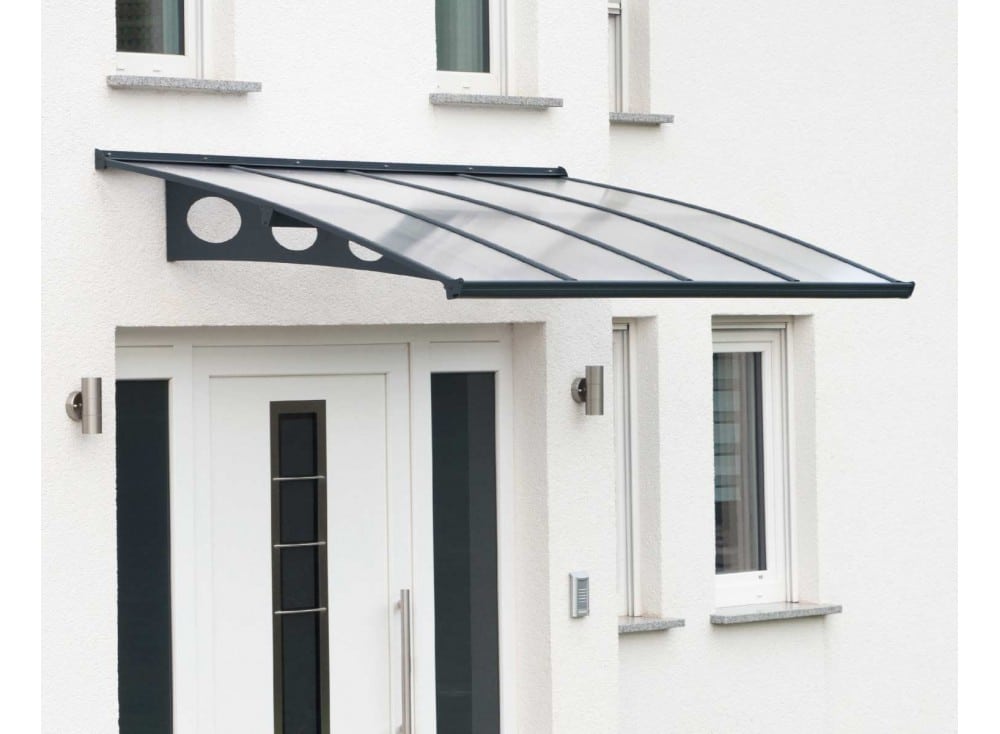

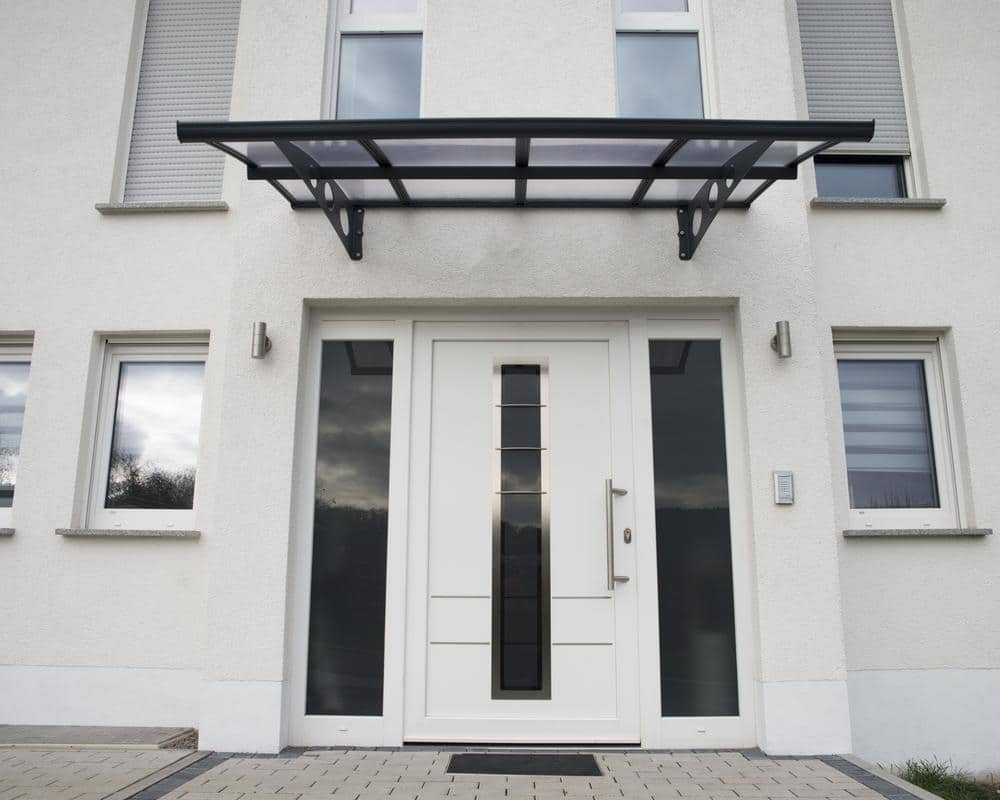

Herald Door Awning
- Safe ultra-durable awning, designed to finely decorate and protect your entryway, doors, and windows
- Blocks up to 100% of harmful UV rays, to preserve your entryways from sun damage and wear
- Directs rain and snow off to the sides, keeping your entrance clear and your door protected from rain
- Lifetime resilient glazing; does not fracture, become brittle or turn yellow over time
- Proprietary screw-free roofing assembly system, specially developed to prevent rain/dew leaks
- Anti-rust galvanized structure, engineered to withstand harsh weather conditions
- Clean-lined, classic design
- Friendly and safe DIY assembly kit
- Maintenance-free, built-to-last thanks to outstandingly durable materials
- Made with 100% recyclable materials
Roofing panel
- Virtually unbreakable, 6 mm twin-wall polycarbonate panels are high impact, shatter resistant and protect from inclement weather
- Maintain their integrity, provide complete UV blockage, and are 100% UV protected; they do not discolour, fracture or become brittle over time
- Smart and fast locking assembly system secure DIY installation
- Ready to assemble pre-cut panels
- No need to drill through the Polycarbonate panels
Frame Material
- Rust-resistant, aluminum frame

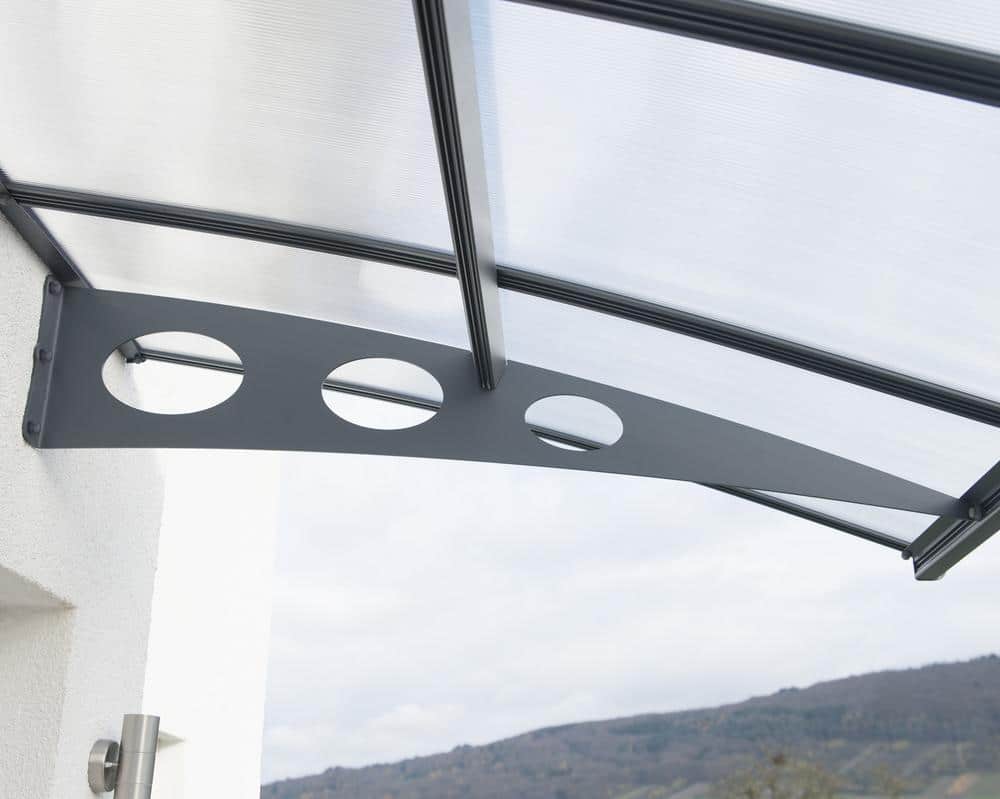

- Durable, laser cut, powder coated, Galvanised Steel support arms in dark grey finish (RAL 7016)
- Ready to assemble pre-drilled profiles

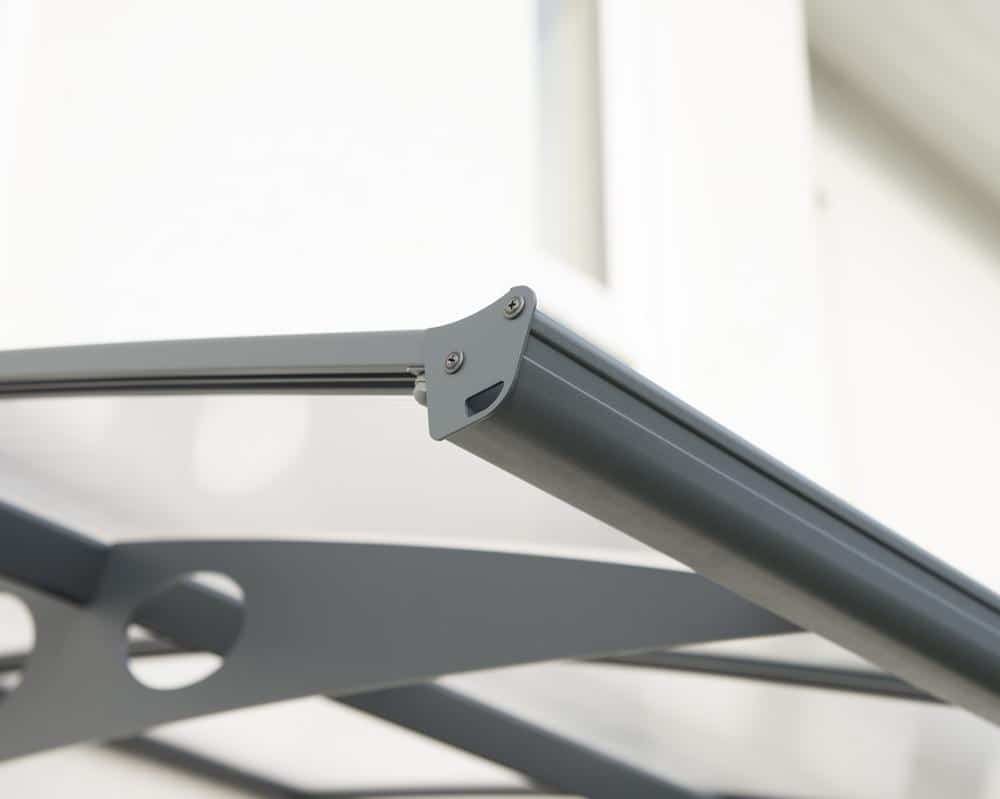

Gutter
Front Aluminium gutter directs rainwater sideways

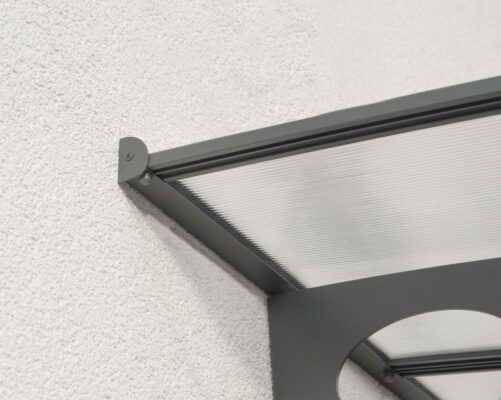

Mounting
- Back hidden rubber gasket seals canopy to the wall surface & prevents water seepage
- Mounting hardware included
Specifications
- WIND RESISTANCE – 120km/hr | 75ml/hr
- SNOW LOAD – 120kg/m² | 24.6lbs/ft²
- LIGHT TRANSMISSION – 80%
- POLYCARBONATE PANEL – 6mm

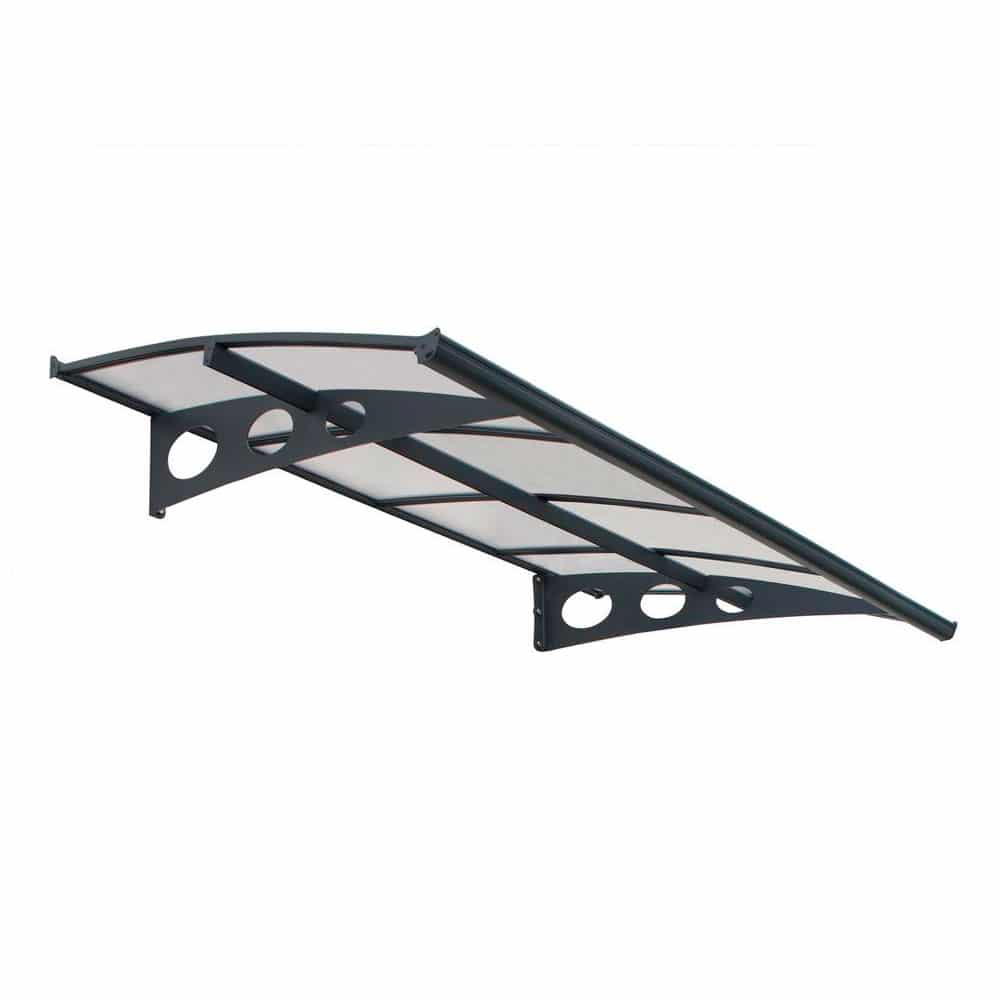

Herald 2230

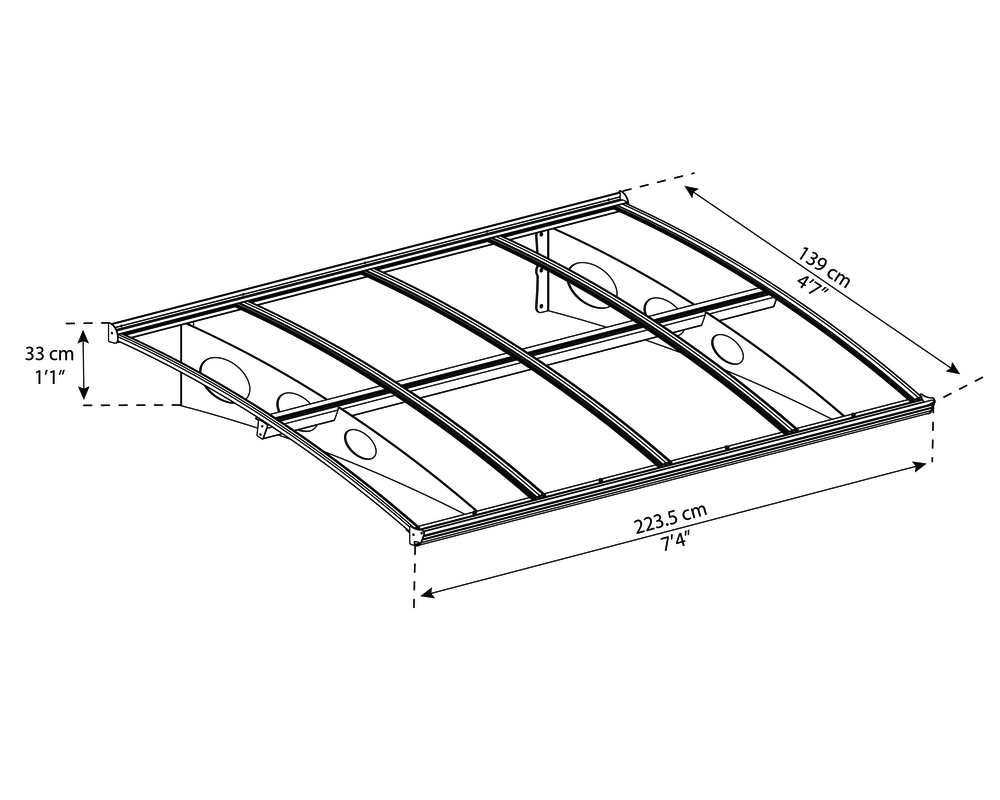

Herald 2230 Door Awning Dimensions:
| ASSEMBLED | INTERNAL | DOOR DIMENSIONS | EAVES | BASE DIMENSIONS | ||||||
| cm | feet | cm | Inch | cm | Inch | cm | Inch | cm | Inch | |
| WIDTH | 139 | 4'7" | N/A | N/A | N/A | N/A | - | - | N/A | N/A |
| LENGTH | 223.5 | 7'4" | N/A | N/A | - | - | - | - | N/A | N/A |
| HEIGHT | 33 | 1'1" | N/A | N/A | N/A | N/A | N/A | N/A | - | - |
- COVERING AREA = 3.1M2 / 33.4FT2
Packaging Dimensions & Weight
|
No of Boxes: 1 |
Length
|
Width
|
Height
|
Gross Weight |
Packaging Weight |
Net Weight |
| Box 1 | 229.5 cm | 61.5 cm | 10 cm | 28.8 kg | 3.5 kg | 25.3 kg |
| Total Weight: | 28.8 kg | 3.5 kg | 25.3 kg |

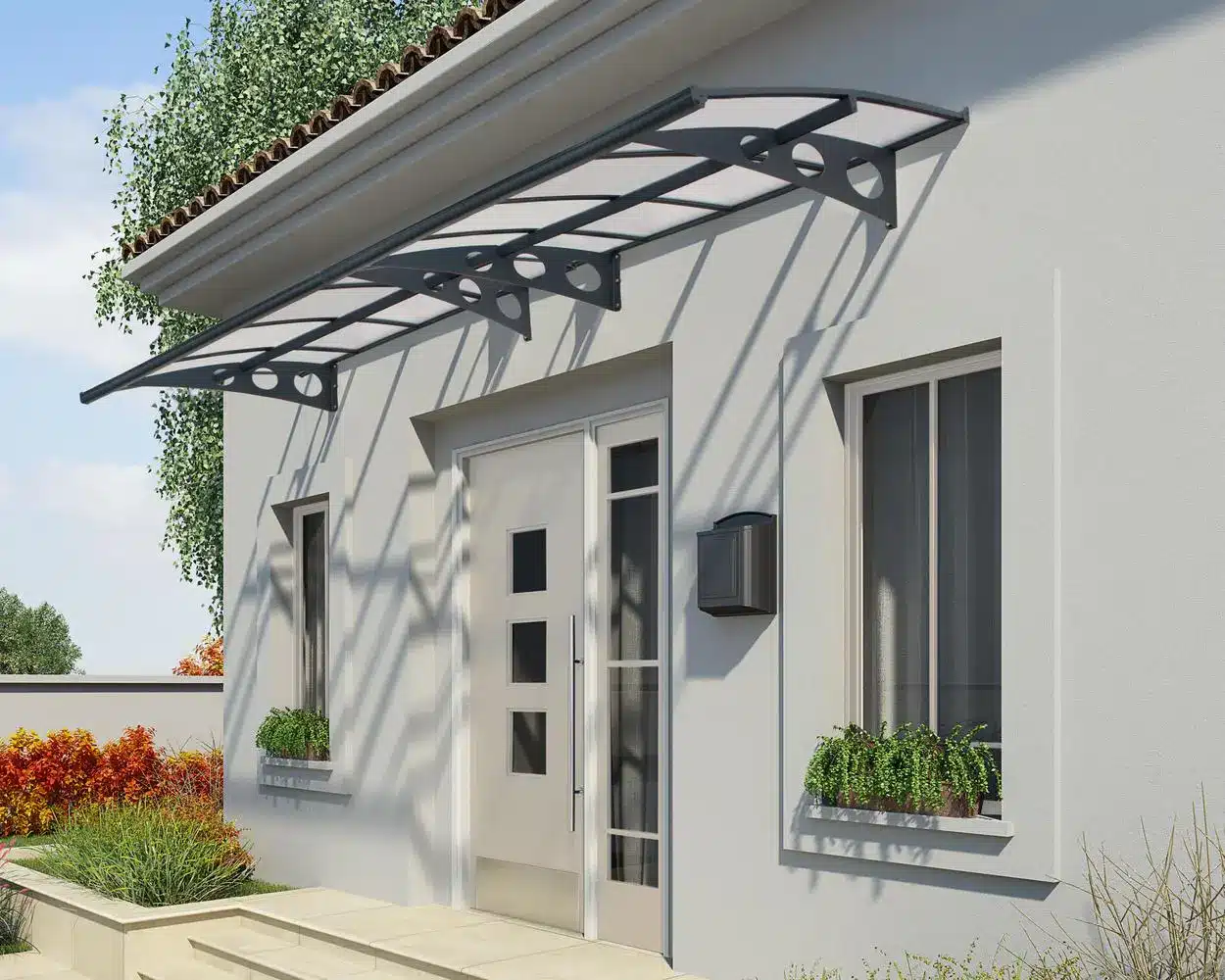

Herald 4460

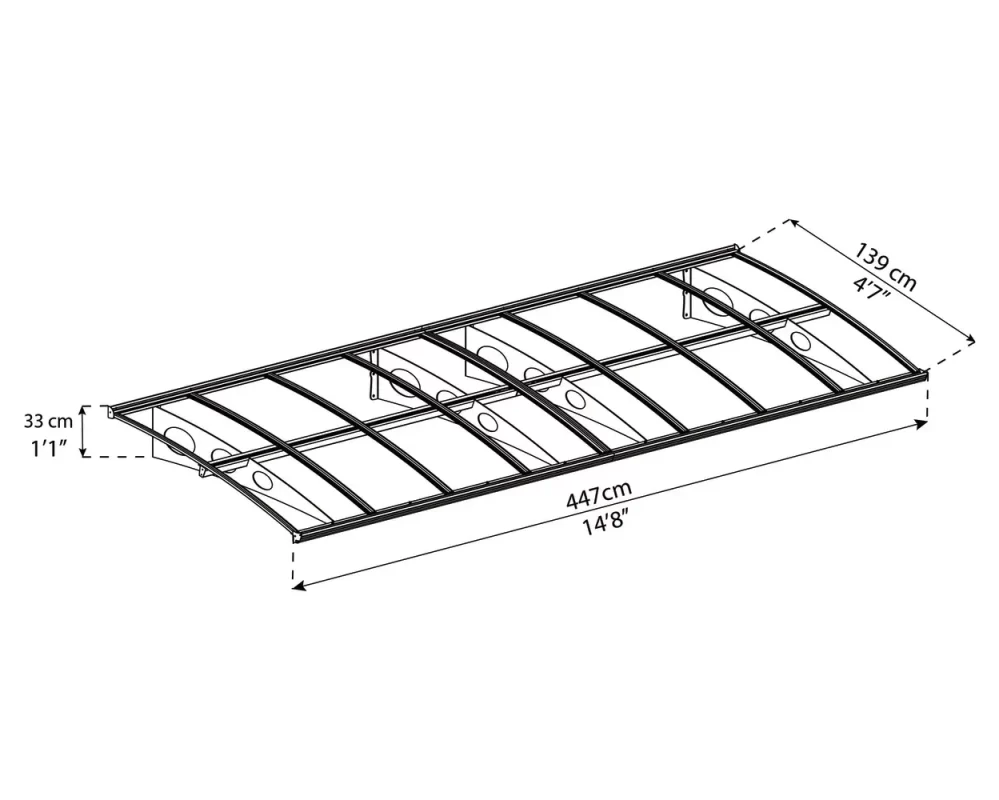

Herald 4460 Door Awning Dimensions:
| ASSEMBLED | INTERNAL | DOOR DIMENSIONS | EAVES | BASE DIMENSIONS | ||||||
| cm | feet | cm | Inch | cm | Inch | cm | Inch | cm | Inch | |
| WIDTH | 139 | 4'7" | N/A | N/A | N/A | N/A | - | - | N/A | N/A |
| LENGTH | 447 | 14'8" | N/A | N/A | - | - | - | - | N/A | N/A |
| HEIGHT | 33 | 1'1" | N/A | N/A | N/A | N/A | N/A | N/A | - | - |
- COVERING AREA = 6.2M2
Packaging Dimensions & Weight
|
No of Boxes: 2 |
Length
|
Width
|
Height
|
Gross Weight |
Packaging Weight |
Net Weight |
| Box 1 | 229.5 cm | 61.5 cm | 10 cm | 28.8 kg | 3.5 kg | 25.3 kg |
| Box 2 | 229.5 cm | 61.5 cm | 10 cm | 28.8 kg | 3.5 kg | 25.3 kg |
| Total Weight: | 57.6 kg | 7 kg | 50.6 kg |

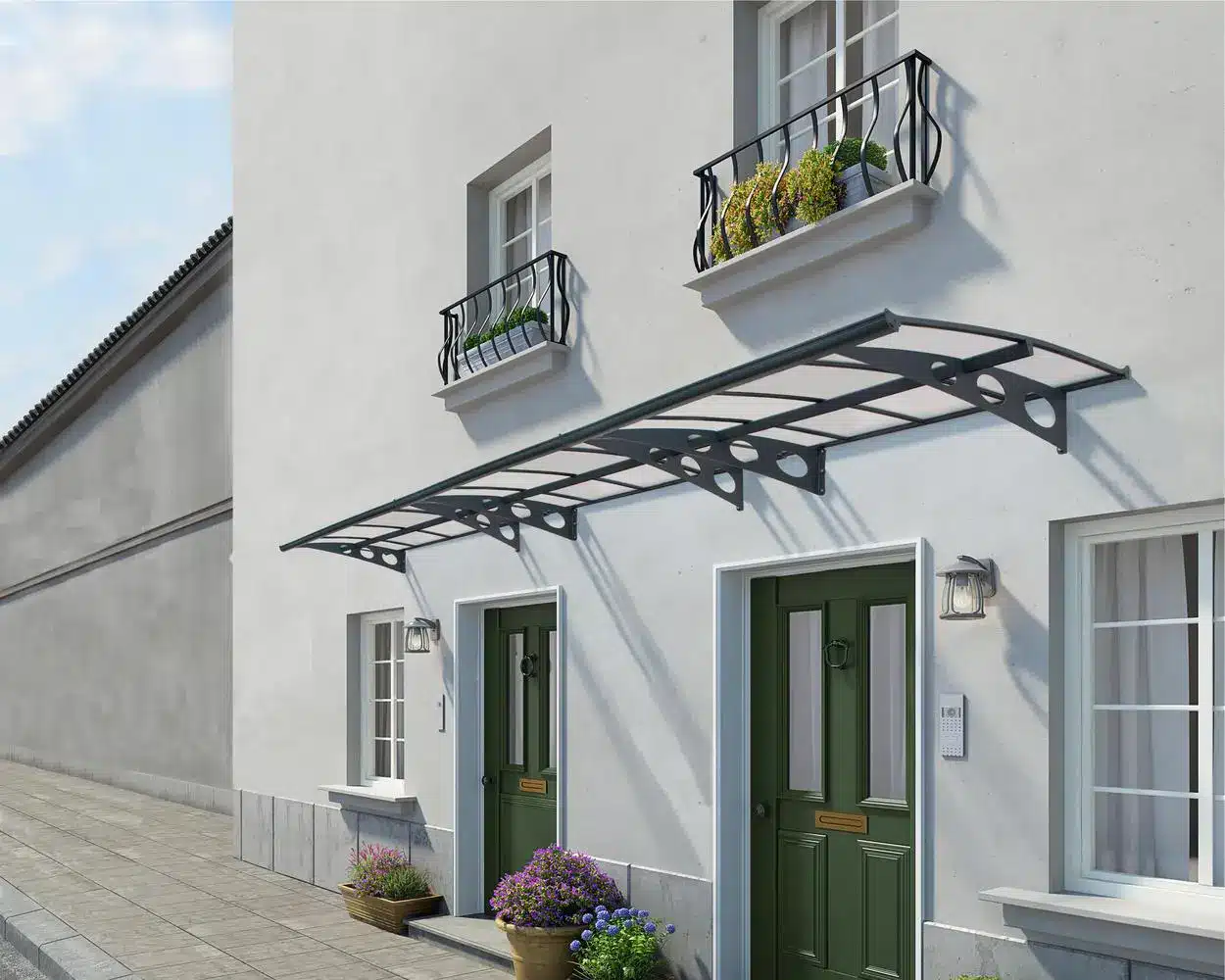

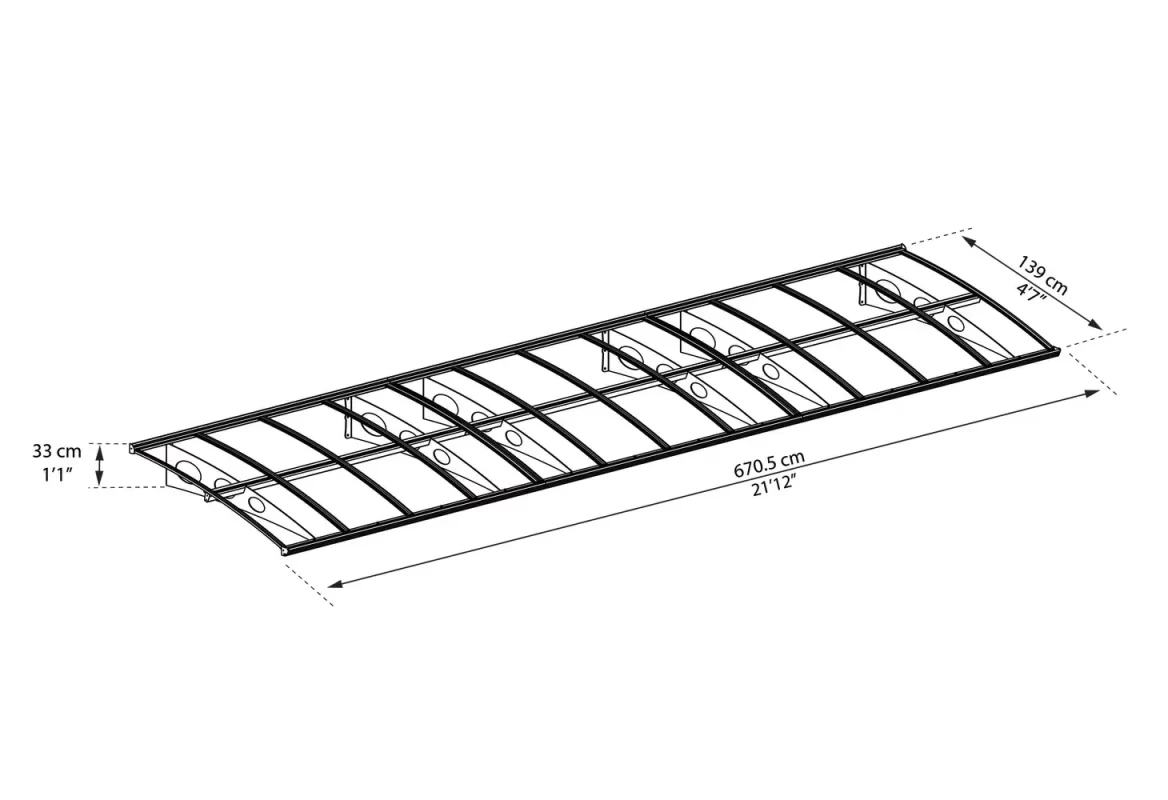

Herald 6690
Herald 4460 Door Awning Dimensions:
| ASSEMBLED | INTERNAL | DOOR DIMENSIONS | EAVES | BASE DIMENSIONS | ||||||
| cm | feet | cm | Inch | cm | Inch | cm | Inch | cm | Inch | |
| WIDTH | 139 | 4'7" | N/A | N/A | N/A | N/A | - | - | N/A | N/A |
| LENGTH | 670.5 | 21'12" | N/A | N/A | - | - | - | - | N/A | N/A |
| HEIGHT | 33 | 1'1" | N/A | N/A | N/A | N/A | N/A | N/A | - | - |
- COVERING AREA = 9.3M2
Packaging Dimensions & Weight
|
No of Boxes: 2 |
Length
|
Width
|
Height
|
Gross Weight |
Packaging Weight |
Net Weight |
| Box 1 | 229.5 cm | 61.5 cm | 10 cm | 28.8 kg | 3.5 kg | 25.3 kg |
| Box 2 | 229.5 cm | 61.5 cm | 10 cm | 28.8 kg | 3.5 kg | 25.3 kg |
| Box 3 | 229.5 cm | 61.5 cm | 10 cm | 28.8 kg | 3.5 kg | 25.3 kg |
| Total Weight: | 86.4 kg | 10.5 kg | 75.9 kg |
Click to view warranty PDF file:
7 reviews for Herald Door Awning | Awning Kit
| 5 star | 85% | |
| 4 star | 14% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
Customer Images
1-5 of 7 reviews
Add a review
You must be logged in to post a review
Log In
*****
Some of our products may require building and planning permissions. Please check with your local council for potential building and planning requirements before proceeding with installation. If you require the engineering certificate and calculation for council application please click below.
