Arcadia Carport Carport Kit
Protect from severe weather and UV radiation with an elegant, durable and maintenance-free carport that offers a multi-purpose outdoor structure
Brand: Palram | Canopia
Delivery ETA
3–10 biz days (metro)
*Free Delivery
SYD · MEL · BRISB · ADELA
Warranty
| Description | DIMENSIONS | ASSEMBLY | WRRANTY | COMPARE CARPORTS | Reviews (5) |

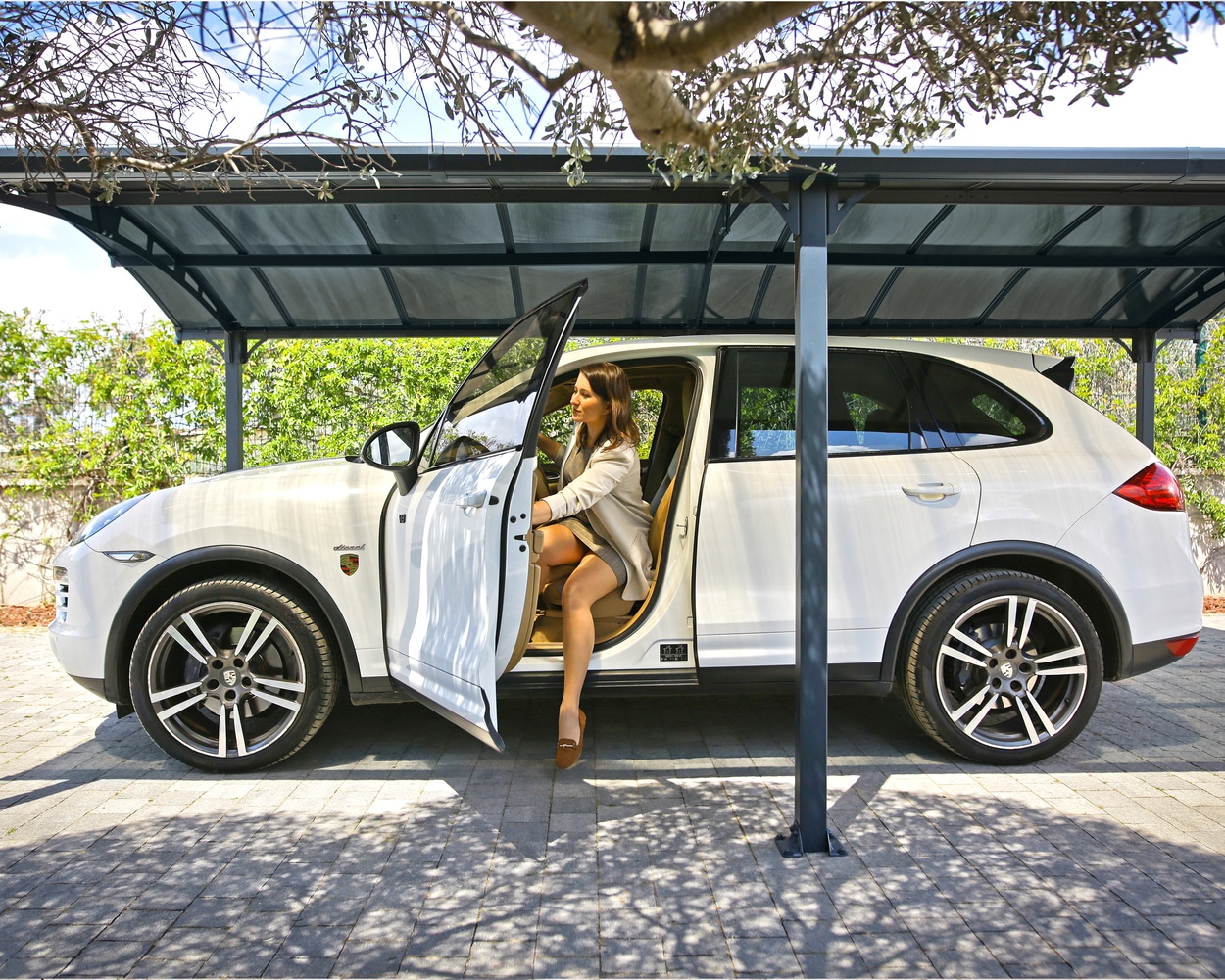

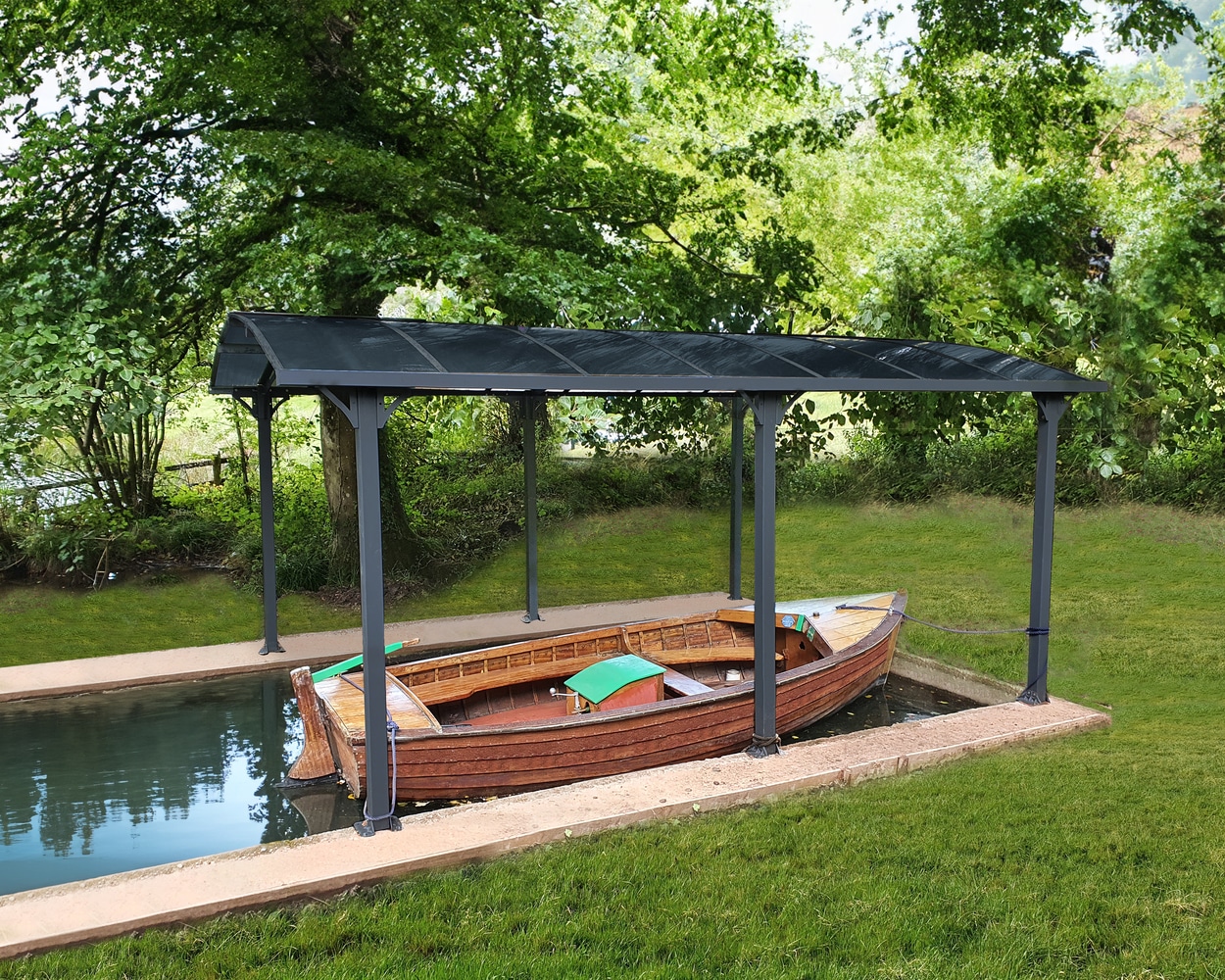

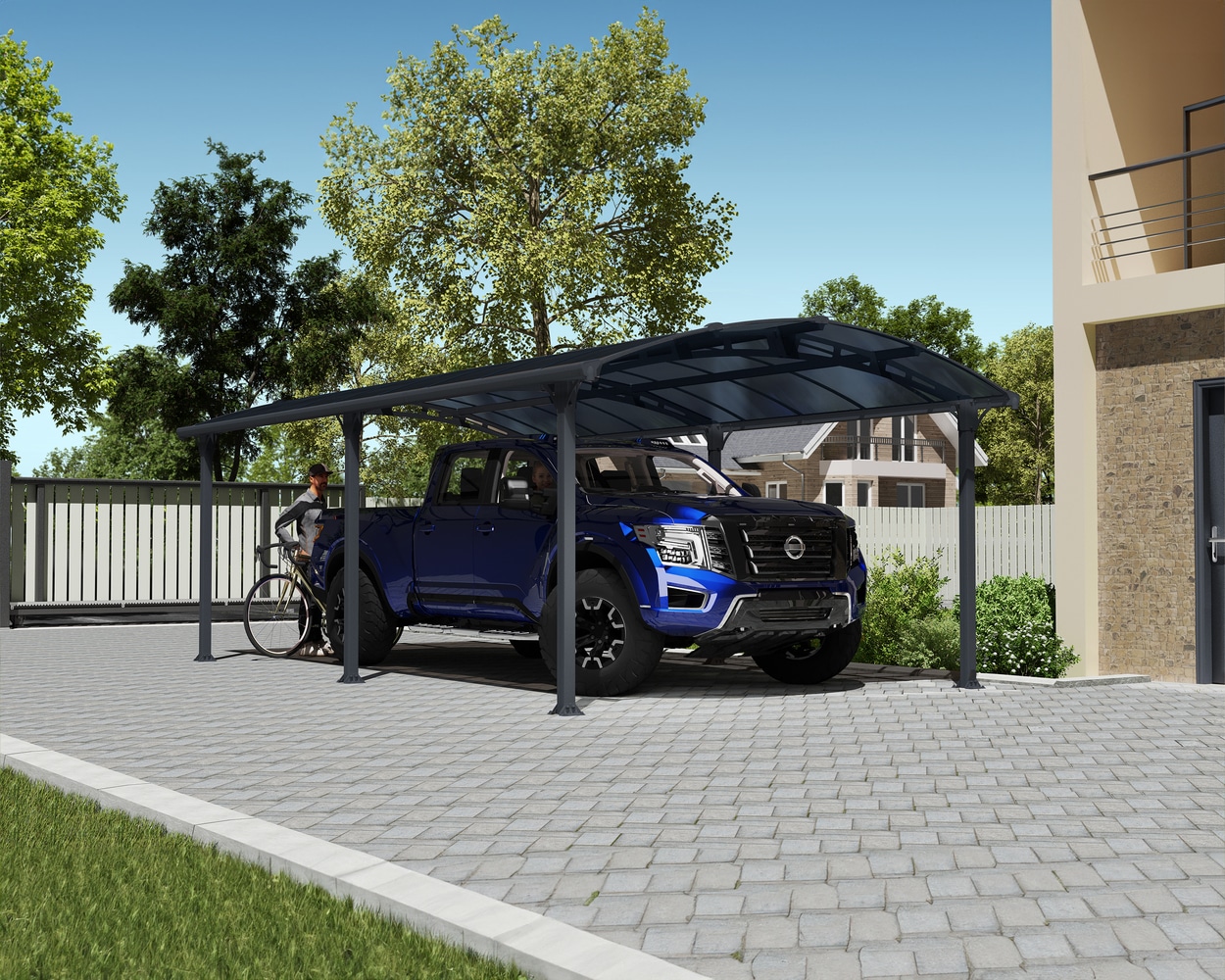

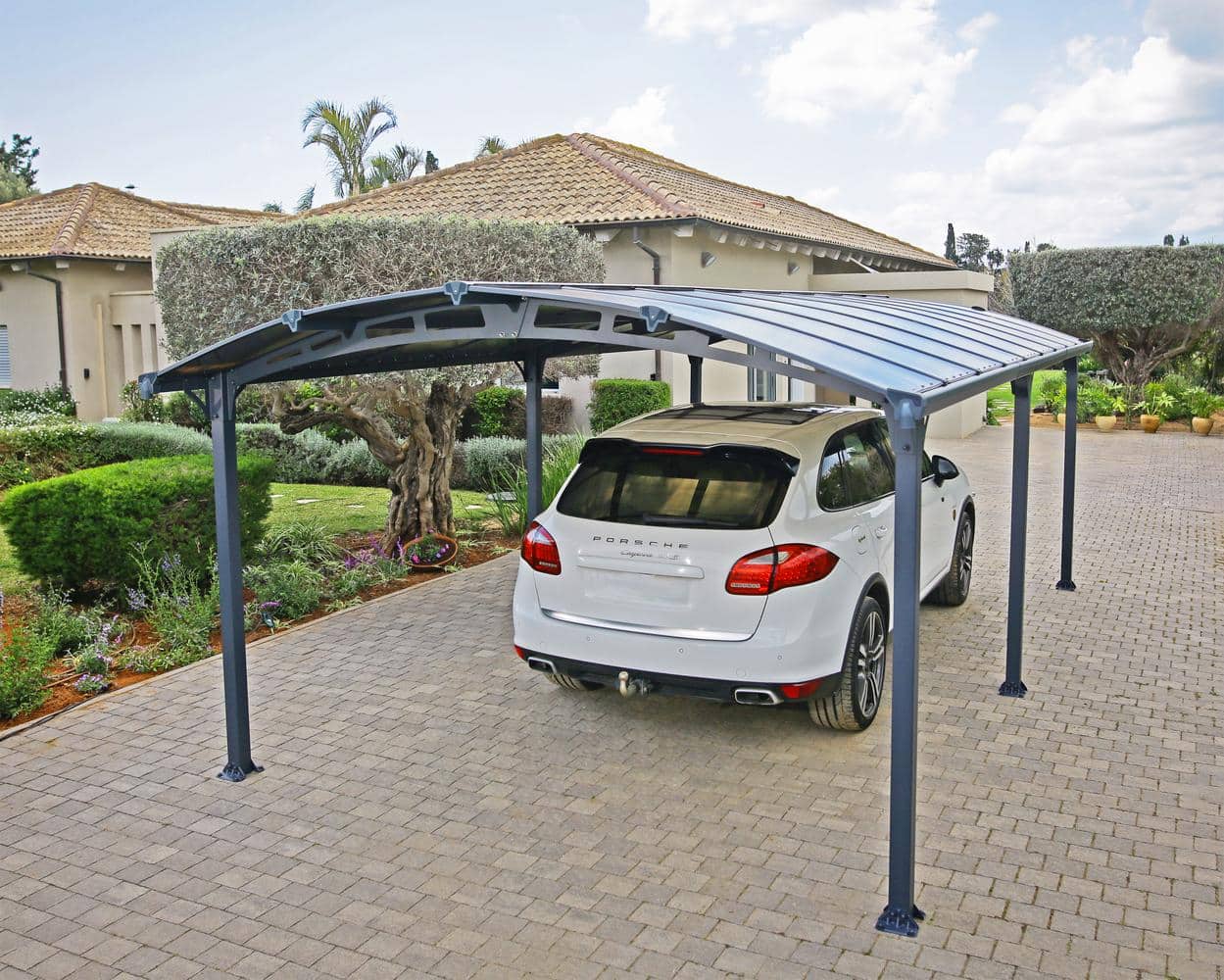

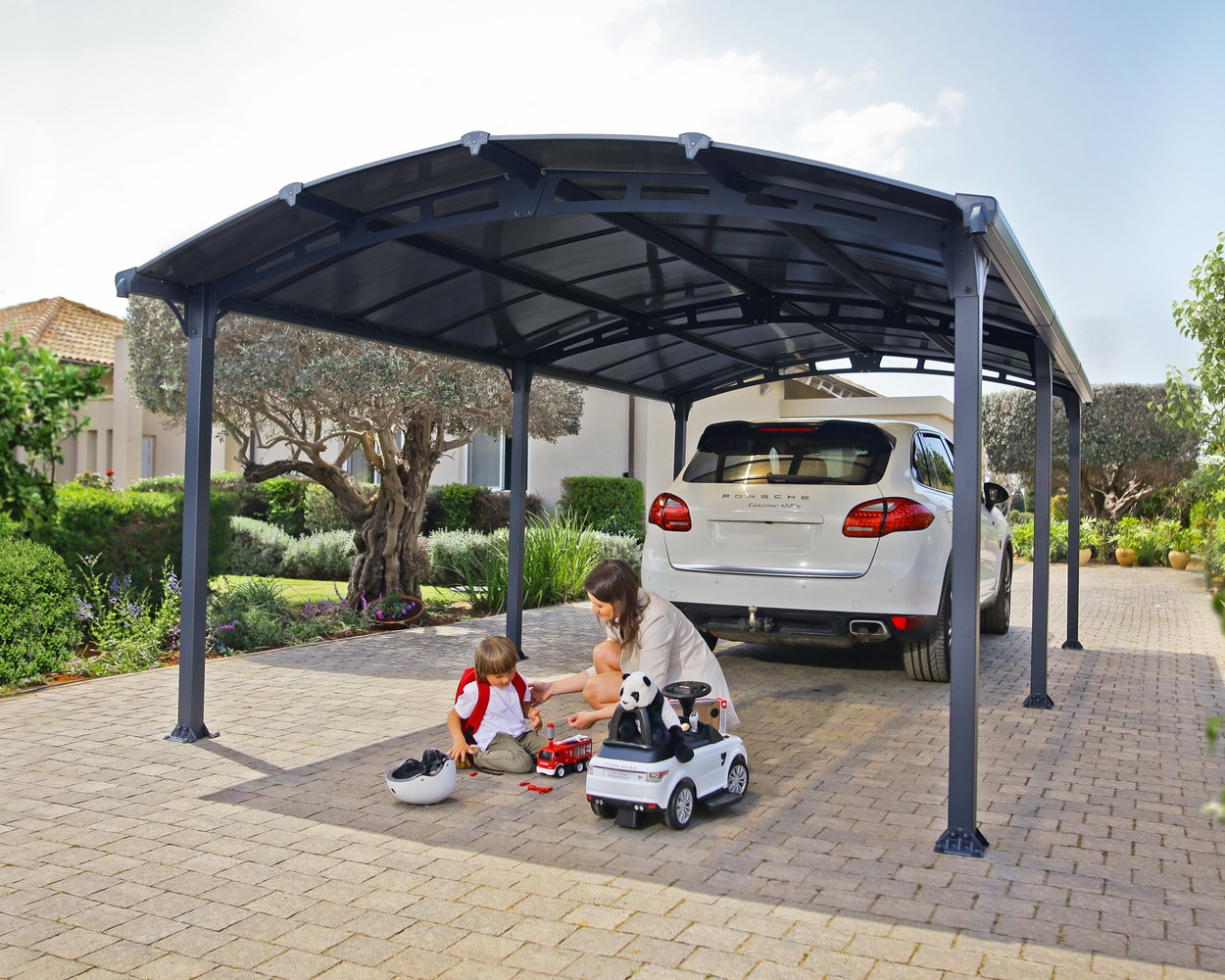

The Arcadia 5000 is a stylish and durable Carport, and outdoor structure. It was crafted to meet your needs for outdoor protection for your car, boat, recreational vehicle and outdoor furniture from rain, snow, hail, and the sun’s harmful UV rays. The Arcadia is a strong and stable, requires no maintenance and has long term durability. Attention to small details such as a gutter system to drain water away and anchoring hardware gives an added value to your carport. The Arcadia 5000 is a high performance carport that was designed to be easily installed by 2 people and requires no experience, no special skills, and no special tools. It provides your family with an elegant cover that is sturdy, maintenance and rust free for many years to come.
Polycarbonate panels

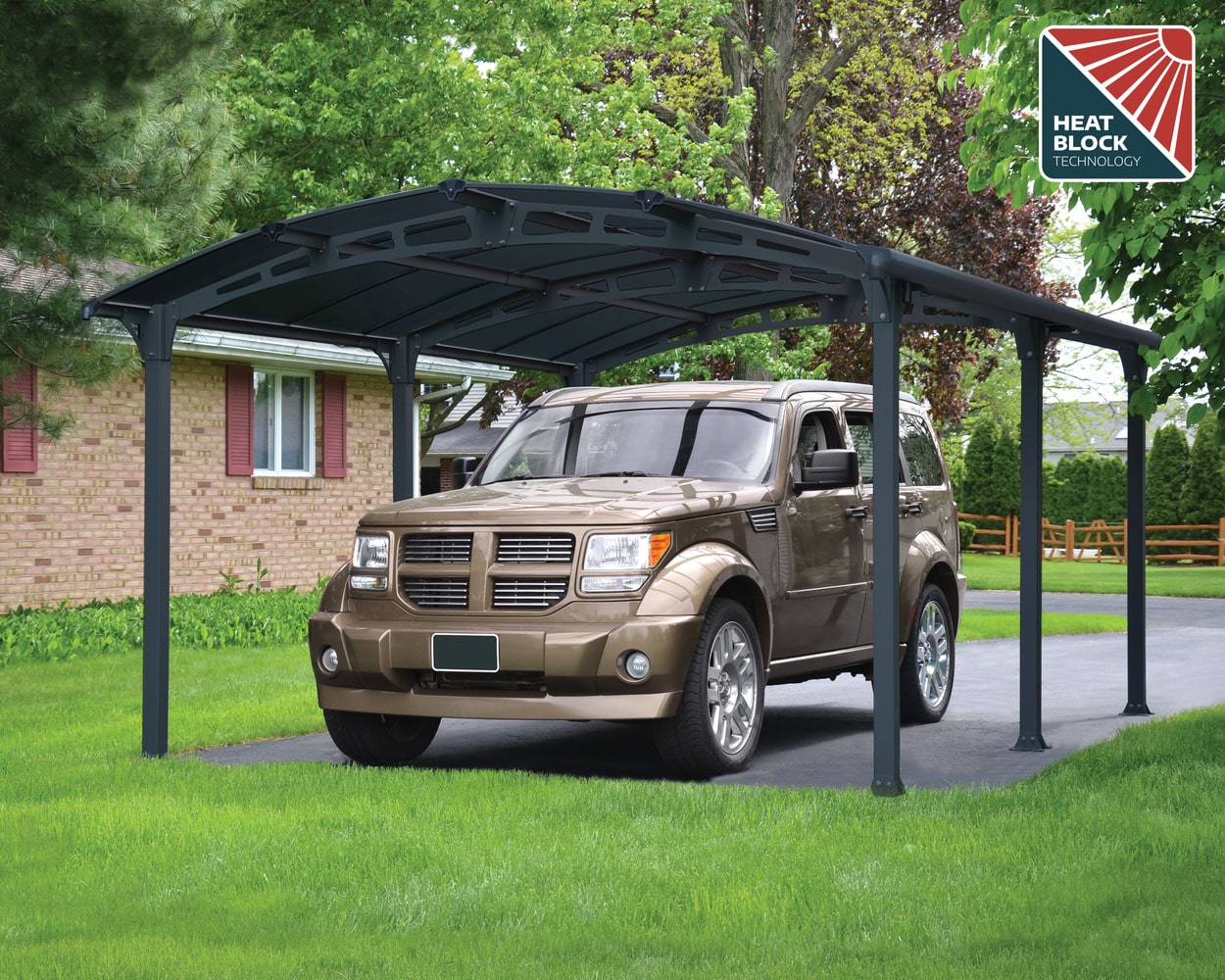

• Virtually unbreakable, the 6 mm matte opaque grey roof panels have full shade glazing with "Heat Block Technology", preventing the sun’s rays from shining through making it cooler and protecting your outdoor space.
• Maintain their integrity, provide complete UV blockage, and are 100% UV protected; they do not discolor, fracture or become brittle over time
• Safe, quick and easy DIY assembly – Slide and lock roofing installation
• Ready to assemble pre-cut panels
Aluminium Structure
• Rust-resistant, anthracite powder-coated frame made of heavy duty aluminium and laser cut galvanised steel connectors
• Ready to assemble pre-drilled profile
Anchoring
• Requires a solid level surface, Anchoring and foot-pads included – Secure the carport to the surface of your choosing
• Structure can be easily relocated
• 6 Sturdy and durable 8×8 cm (3.15 in. x 3.15 in.) aluminium poles
Gutter & gutter heads
• Integrated gutter and gutter heads allow you to easily channel and collect rainwater for a sustainable irrigation system
Carport Dimensions:
| ASSEMBLED | INTERNAL | DOOR DIMENSIONS | EAVES | BASE DIMENSIONS | ||||||
| cm | feet | cm | Inch | cm | Inch | cm | Inch | cm | Inch | |
| WIDTH | 359 | 11'9" | 325 | 128.0 | N/A | N/A | - | - | N/A | N/A |
| LENGTH | 430 | 14'2" | 431 | 169.5 | - | - | - | - | N/A | N/A |
| HEIGHT | 242 | 7'11" | 219 | 86.2 | N/A | N/A | 194.0 | 76.4 | - | - |
- COVERING AREA = 15.5M2 / 166.4FT2
- STORAGE AREA = 14.0M2 / 150.6FT2
- PRODUCT VOLUME = 30.5M3 / 1077.4FT3
Packaging Dimensions & Weight
|
No of Boxes: 2 |
Length
|
Width
|
Height
|
Gross Weight |
Packaging Weight |
Net Weight |
| Box 1 | 217 cm | 76 cm | 14 cm | 62 kg | 2.7 kg | 59.3 kg |
| Box 2 | 217 cm | 76 cm | 14 cm | 62 kg | 2.7 kg | 59.3 kg |
| Total Weight: | 124 kg | 5.4 kg | 118.6 kg |

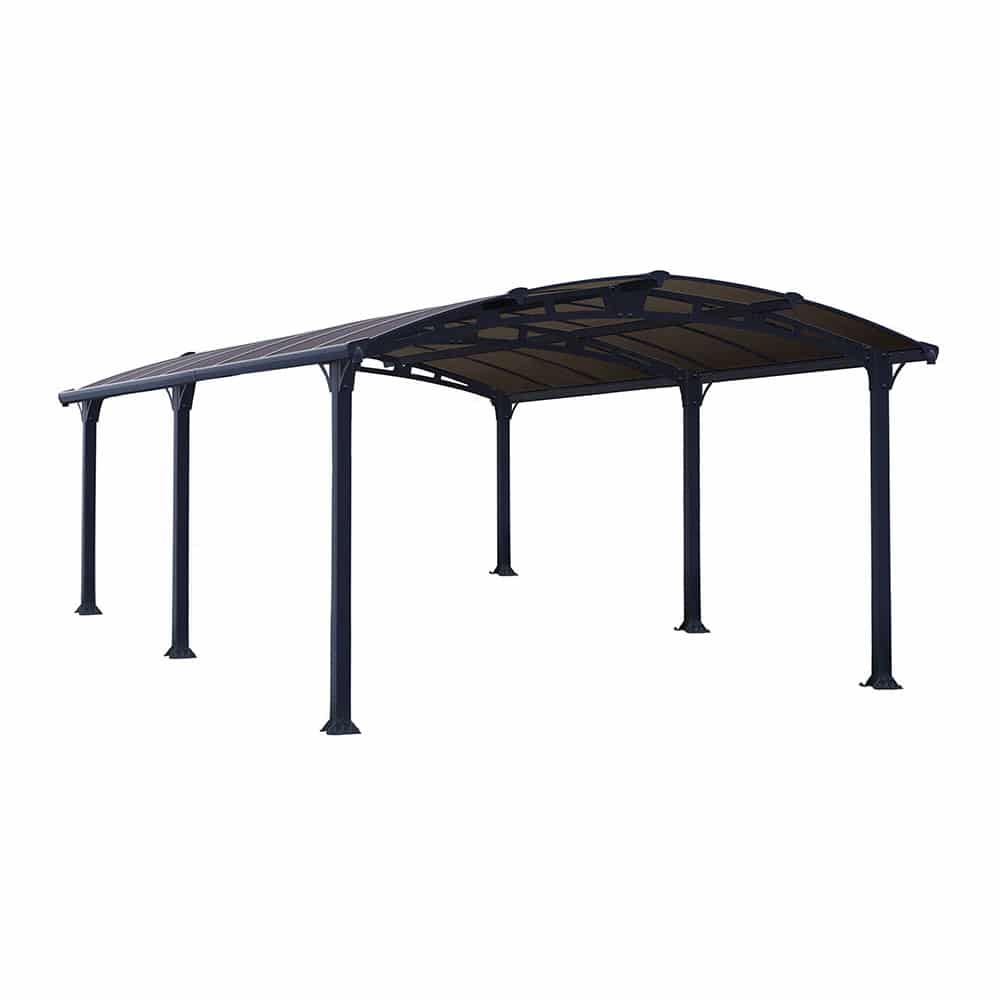

Carport Dimensions:
| ASSEMBLED | INTERNAL | DOOR DIMENSIONS | EAVES | BASE DIMENSIONS | ||||||
| cm | feet | cm | Inch | cm | Inch | cm | Inch | cm | Inch | |
| WIDTH | 359 | 11'11" | 325 | 128.0 | N/A | N/A | - | - | N/A | N/A |
| LENGTH | 502 | 16'6" | 502 | 197.6 | - | - | - | - | N/A | N/A |
| HEIGHT | 242 | 7'11" | 219 | 86.2 | N/A | N/A | 186.0 | 73.2 | - | - |
- COVERING AREA = 18.2M2 / 195.6FT2
- STORAGE AREA = 16.3M2 / 175.6FT2
- PRODUCT VOLUME = 34.9M3 / 1233.0FT3
Packaging Dimensions & Weight
|
No of Boxes: 3 |
Length
|
Width
|
Height
|
Gross Weight |
Packaging Weight |
Net Weight |
| Box 1 | 217 cm | 76 cm | 14 cm | 62 kg | 2.7 kg | 59.3 kg |
| Box 2 | 217 cm | 76 cm | 14 cm | 62 kg | 2.7 kg | 59.3 kg |
| Box 3 | 204 cm | 75 cm | 13 cm | 47 kg | 2.4 kg | 44.6 kg |
| Total Weight: | 171 kg | 7.8 kg | 163.2 kg |

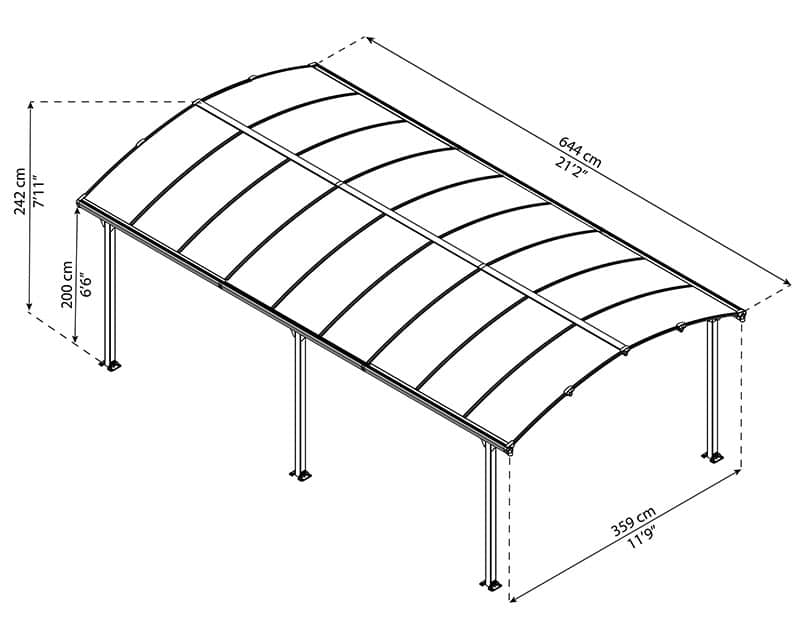

Carport Dimensions:
| ASSEMBLED | INTERNAL | DOOR DIMENSIONS | EAVES | BASE DIMENSIONS | ||||||
| cm | feet | cm | Inch | cm | Inch | cm | Inch | cm | Inch | |
| WIDTH | 359 | 11'9" | 325 | 128.0 | N/A | N/A | - | - | N/A | N/A |
| LENGTH | 644.0 | 21'2" | 644 | 253.5 | - | - | - | - | N/A | N/A |
| HEIGHT | 242.0 | 7'11" | 219 | 86.2 | N/A | N/A | 194.0 | 76.4 | - | - |
- COVERING AREA = 23.1M2 / 248.9FT2
- STORAGE AREA = 20.9M2 / 225.3FT2
- PRODUCT VOLUME = 45.6M3 / 1611.3FT3
Packaging Dimensions & Weight
|
No of Boxes: 3 |
Length
|
Width
|
Height
|
Gross Weight |
Packaging Weight |
Net Weight |
| Box 1 | 217 cm | 76 cm | 14 cm | 62 kg | 2.7 kg | 59.3 kg |
| Box 2 | 217 cm | 76 cm | 14 cm | 62 kg | 2.7 kg | 59.3 kg |
| Box 3 | 217 cm | 76 cm | 14 cm | 64 kg | 2.7 kg | 61.3 kg |
| Total Weight: | 188 kg | 8.1 kg | 179.9 kg |

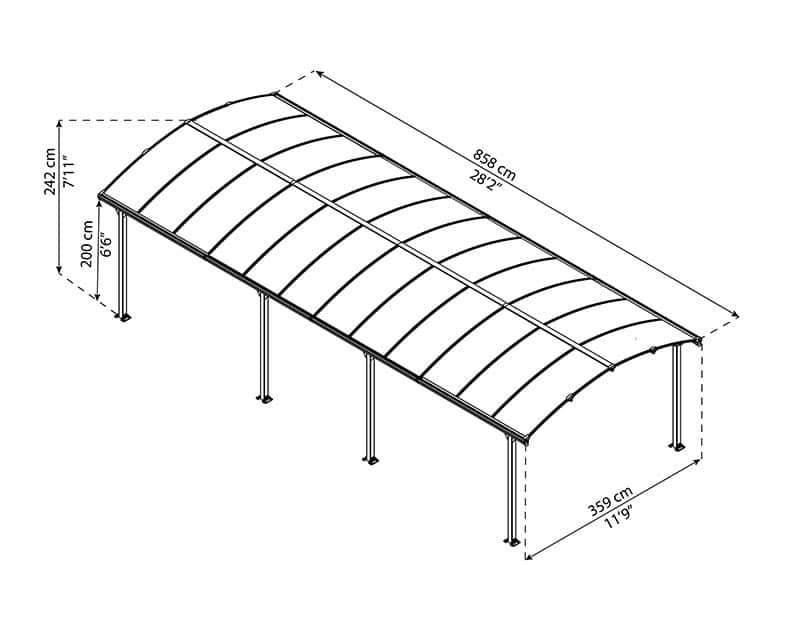

Carport Dimensions:
| ASSEMBLED | INTERNAL | DOOR DIMENSIONS | EAVES | BASE DIMENSIONS | ||||||
| cm | feet | cm | Inch | cm | Inch | cm | Inch | cm | Inch | |
| WIDTH | 359 | 11'9" | 325 | 128.0 | N/A | N/A | - | - | N/A | N/A |
| LENGTH | 858.0 | 28'2" | 431 | 169.5 | - | - | - | - | N/A | N/A |
| HEIGHT | 242.0 | 7'11" | 219 | 86.2 | N/A | N/A | 195.0 | 76.8 | - | - |
- COVERING AREA = 30.8M2 / 331.6FT2
- STORAGE AREA = 14.0M2 / 150.6FT2
- PRODUCT VOLUME = 30.6M3 / 1079.8FT3
Packaging Dimensions & Weight
|
No of Boxes: 4 |
Length
|
Width
|
Height
|
Gross Weight |
Packaging Weight |
Net Weight |
| Box 1 | 217 cm | 76 cm | 14 cm | 62 kg | 2.7 kg | 59.3 kg |
| Box 2 | 217 cm | 76 cm | 14 cm | 62 kg | 2.7 kg | 59.3 kg |
| Box 3 | 217 cm | 76 cm | 14 cm | 61 kg | 2.7 kg | 58.3 kg |
| Box 4 | 217 cm | 76 cm | 14 cm | 61 kg | 2.7 kg | 58.3 kg |
| Total Weight: | 246 kg | 10.8 kg | 235.2 kg |

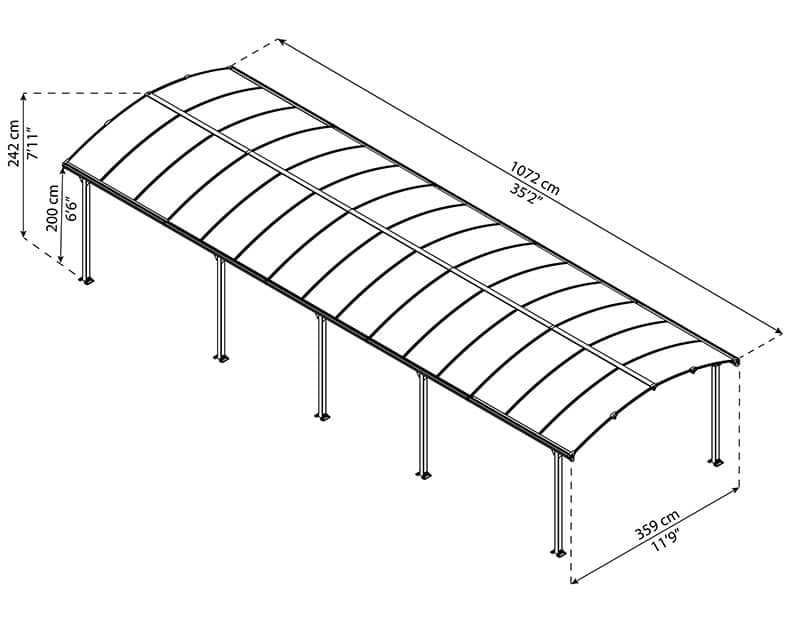

Carport Dimensions:
| ASSEMBLED | INTERNAL | DOOR DIMENSIONS | EAVES | BASE DIMENSIONS | ||||||
| cm | feet | cm | Inch | cm | Inch | cm | Inch | cm | Inch | |
| WIDTH | 359 | 11'9" | 325 | 128.0 | N/A | N/A | - | - | N/A | N/A |
| LENGTH | 1072.0 | 35'2" | 431 | 169.5 | - | - | - | - | N/A | N/A |
| HEIGHT | 242.0 | 7'11" | 219 | 86.2 | N/A | N/A | 196.0 | 77.2 | - | - |
- COVERING AREA = 38.5M2 / 414.3FT2
- STORAGE AREA = 14.0M2 / 150.6FT2
- PRODUCT VOLUME = 30.6M3 / 1082.3FT3
Packaging Dimensions & Weight
|
No of Boxes: 5 |
Length
|
Width
|
Height
|
Gross Weight |
Packaging Weight |
Net Weight |
| Box 1 | 217 cm | 76 cm | 14 cm | 62 kg | 2.7 kg | 59.3 kg |
| Box 2 | 217 cm | 76 cm | 14 cm | 62 kg | 2.7 kg | 59.3 kg |
| Box 3 | 217 cm | 76 cm | 14 cm | 61 kg | 2.7 kg | 58.3 kg |
| Box 4 | 217 cm | 76 cm | 14 cm | 61 kg | 2.7 kg | 58.3 kg |
| Box 5 | 217 cm | 76 cm | 14 cm | 61 kg | 2.7 kg | 58.3 kg |
| Total Weight: | 307 kg | 13.1 kg | 293.5 kg |
Click to view certificates PDF file:
| Feature / Carport Type | Palram – Canopia Carport | Wooden Carport | Fabric Carport | Metal Carport |
| Frame Materials | Heavy duty, corrosion resistant Aluminium and galvanised steel | Wood | Fabric and Steel | Steel |
| Covering Type | Twin-Wall Polycarbonate roof panels | Usually sold separately | Polyester – Colour fading and rot over time / Polyethylene fabric – Hail resistant | Usually sold with the following cover options: PVC – Not hail resistant / Tin roof – May dent / Fiberglass – May cause health problems / Aluminium – Hail resistant |
| UV Resistance | All UV resistant – 100% UV protected non yellowing panels and powder coated Aluminium frame | Special expensive coating is needed annually | UV protected | Depend upon powder coating quality |
| Rot Resistance | Yes | None, requires periodic special coating / treatment | Depends on the covering type | Yes |
| Drainage | Integrated gutter and gutter heads | None (may be sold separately) | None | None (may be sold separately) |
| Weather Resistance | Extreme weather resistant – No wear and tear Withstands low temperatures up to -210°F / Withstands high temperatures up to 270°F | Needs periodic treatments | Weather resistant – Good corrosion resistance Does not withstand high temperatures, can become brittle over time | Needs periodic treatments |
| Maintenance | Maintenance free, rinse with water | Requires regular maintenance such as painting, rot treatments, sanding etc. | Requires regular maintenance such as replacing the covering, painting and anti-rust treatment, corrosion and rust appear over time | Requires regular maintenance such as painting and anti-rust treatment, corrosion and rust appear over time |
| Assembly | Quick and simple DIY setup – Assembled with common household tools | Usually requires professional setup | Quick and easy DIY setup | Usually requires professional setup |
| Assembly Kit | Fully equipped assembly kit provided – Anchoring and foot-pads Kit along with all screws and bolts | None (sold separately) | Usually a fully equipped assembly kit provided | Usually a fully equipped assembly kit provided |
| Eco Friendly | 100% recyclable and reusable | Uprooting forests | Does not decompose, becoming an environmental contamination | Harmful paints and materials pervade ground water |
| Warranty | 10 year | Varies | None – 1 Year | Varies |
| Packaging / Transport | Compact & efficient packaging, to be transported in your own pickup | Usually a heavy truck delivery | Compact packaging | Usually a heavy truck delivery |
5 reviews for Arcadia Carport Carport Kit
| 5 star | 80% | |
| 4 star | 20% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
Customer Images
*****
Some of our products may require building and planning permissions. Please check with your local council for potential building and planning requirements before proceeding with installation. If you require the engineering certificate and calculation for council application please click below.
Thanks so much, Kim! We appreciate your purchase of the Arcadia Carport Kit and your support. We hope you’re loving the new setup and that it serves you well for years to come!
Well made and looks good.
Thanks so much, Fred! We’re happy to hear you’re pleased with your Arcadia Carport Kit and that it looks great. We appreciate your feedback and hope you enjoy it for many years to come!
Nice looking carport but the utmost care should be taken when drilling holes for screws that should be aligned and also when packing the materials that should be checked for broken parts, scratches and dents which prolonged the installation cause we waited for parts to be delivered.
Hi Michael, thanks for sharing your experience, we have already arranged and sent the new replacement parts. We apologise for the inconvenience caused by the delay, due to the damaged parts from delivery and worked promptly to replace all damaged parts.

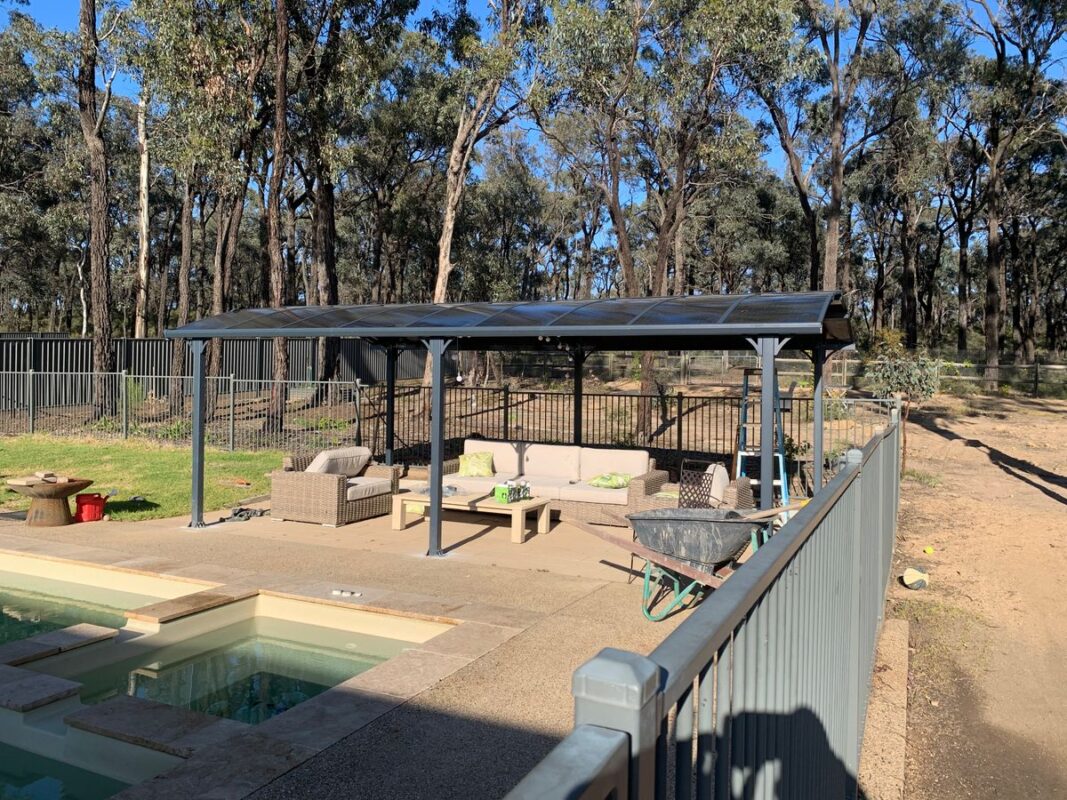

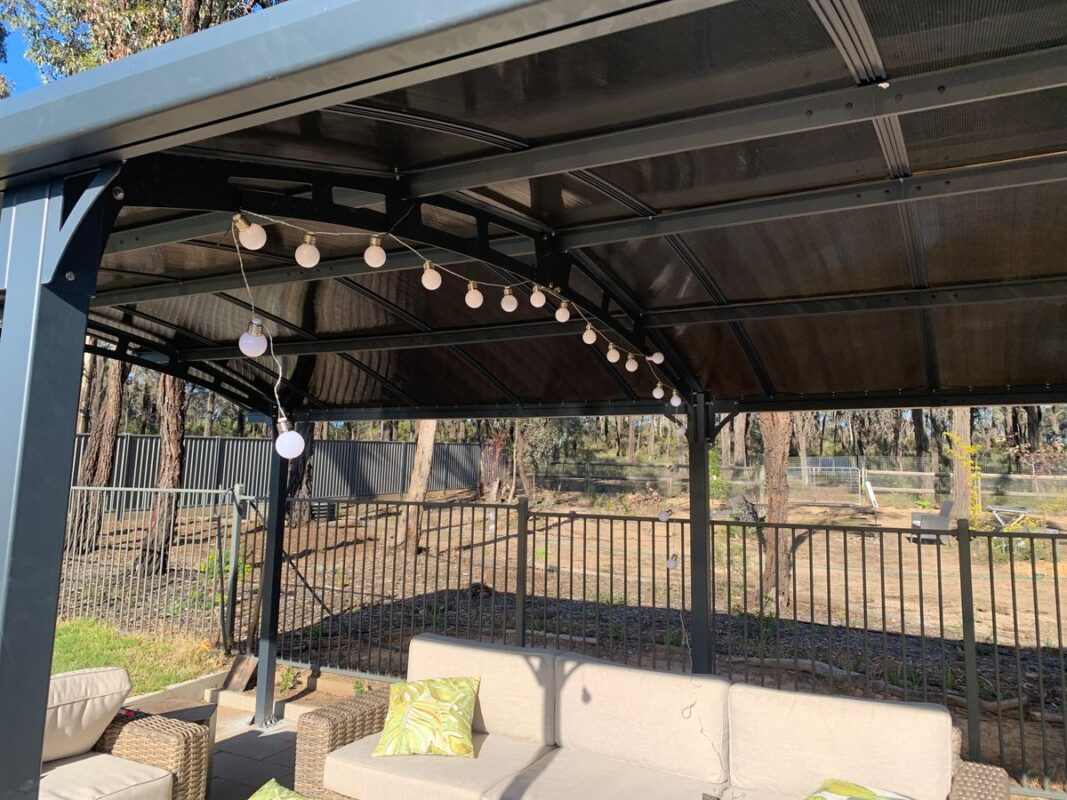

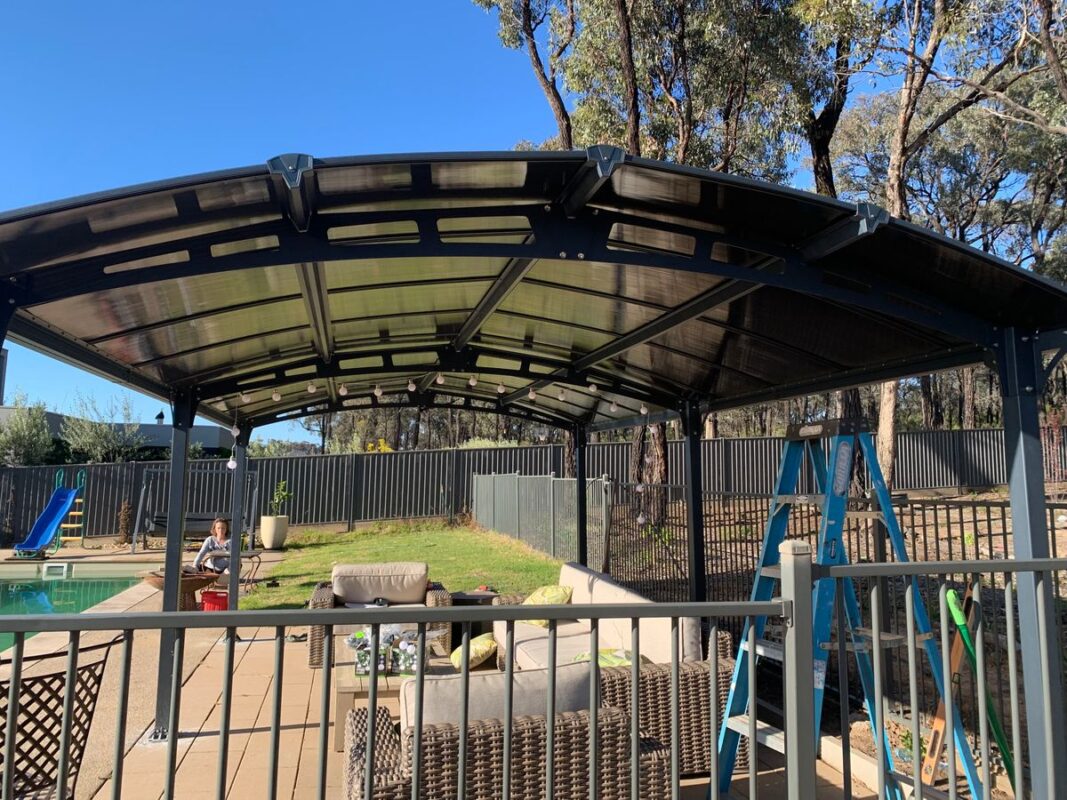

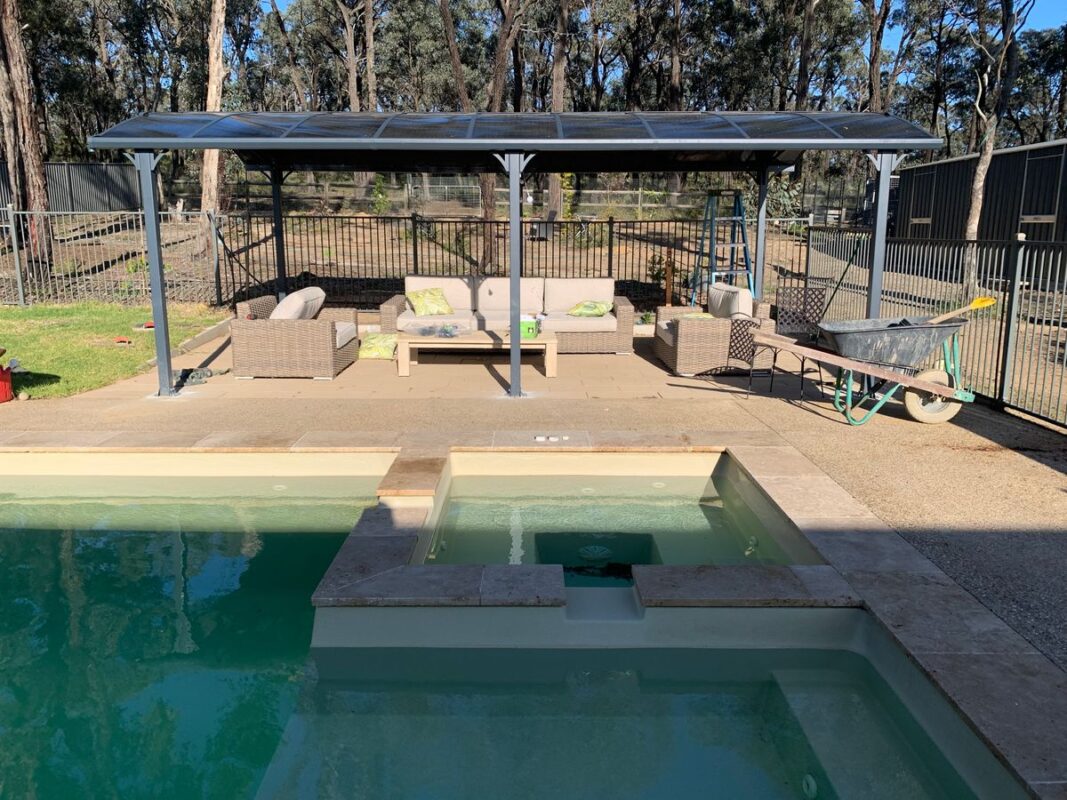

Easy to follow instructions chord together well, sturdy. We have used it as a pool shade structure. A few days after installing a severe storm including strong winds and hail passed through but shade structure weathered it easily.
Hi David, its looks amazing next to the pool, thanks for sharing your experience and photos 😊
Was more rigid than I was expecting
Yes they are rigid carports!
